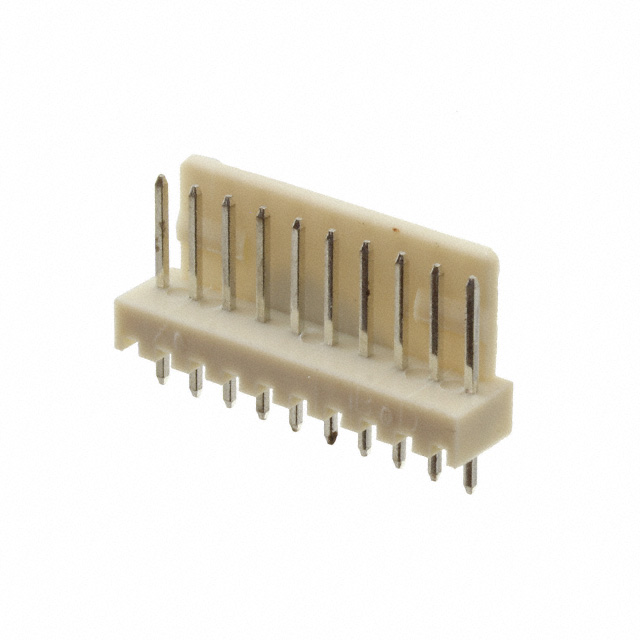

LHA-10-TS _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	LHA-10-TS
Manufacturer	Adam Tech
Other Part Numbers	2057-LHA-10-TS-ND 2057-LHA-10-TS
Description	CONN HEADER VERT 10POS 2.54MM
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Adam Tech
Series		LHA
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250VAC
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		10
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-25°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-2
Contact Material		Brass
Insulation Color		Ivory
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.134" (3.40mm)
Shrouding		Shrouded - 1 Wall
Overall Contact Length		0.559" (14.20mm)
Insulation Material		Polyamide (PA), Nylon
Contact Length - Mating		0.291" (7.40mm)

RESOURCE TYPE		LINK
Datasheets		LHA-10-TS
Datasheets		Medical Industry Brochure
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
