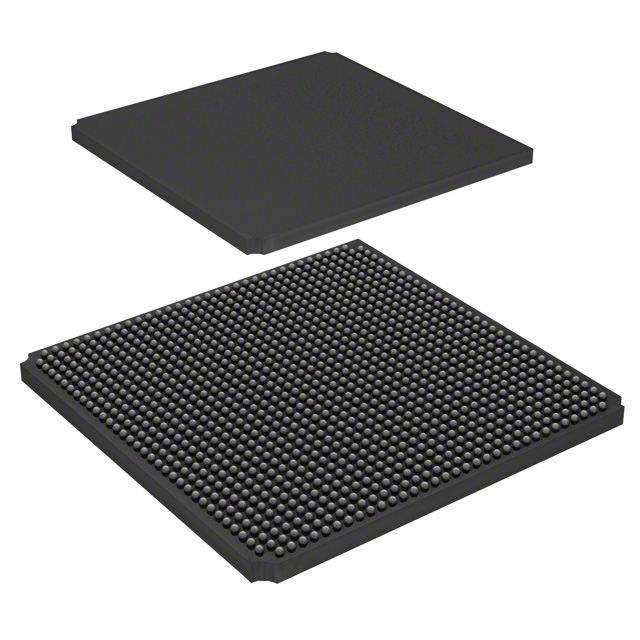

LFE2M70E-5FN1152I

LFE2M70E-5FN1152I

Part Number	LFE2M70E-5FN1152I
Manufacturer	Lattice Semiconductor
Other Part Numbers	LFE2M70E-5FN1152I-ND
Description	IC FPGA 436 I/O 1152FBGA
Detailed Description	ECP2M Field Programmable Gate Array (FPGA) IC 436 4642816 67000 1152-BBGA

Product Attributes

Category		Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
Manufacturer		Lattice Semiconductor
Series		ECP2M
Packaging		Tray
Part Status		Not For New Designs
Package / Case		1152-BBGA
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C (TJ)
Voltage - Supply		1.14V ~ 1.26V
Number of Logic Elements/Cells		67000
Supplier Device Package		1152-FPBGA (35x35)
Number of LABs/CLBs		8375
Total RAM Bits		4642816
Number of I/O		436
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LFE2M70E-5FN1152I
Datasheets		ECP2(M) Family Handbook
Datasheets		Multiple Devices Cu Wire 01/Jul/2013
Datasheets		Top Mark Format Change 20/Dec/2023
Datasheets		Alternate Qualified Test Site 30/Sep/2013
Datasheets		All Dev Pkg Mark Chg 12/Nov/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		3A991D
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
