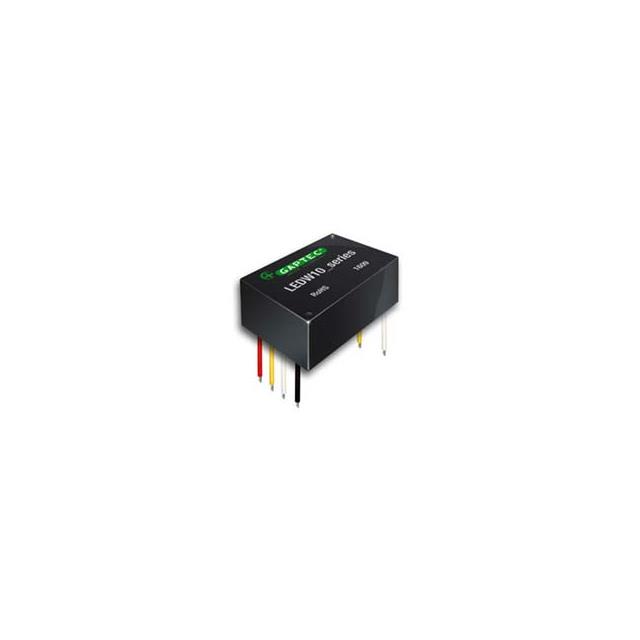

LEDW10_24-700A

LEDW10_24-700A

Part Number	LEDW10_24-700A
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-LEDW10_24-700A-ND 3182-LEDW10_24-700ACTINACTIVE 3182-LEDW10_24-700ATR 3182-LEDW10_24-700ADKRINACTIVE 3182-LEDW10_24-700A-ND 3182-LEDW10_24-700ACT 3182-LEDW10_24-700A 3182-LEDW10_24-700ATR-ND 3182-LEDW10_24-700ACT-ND 3182-LEDW10_24-700ADKR 3182-LEDW10_24-700ADKR-ND
Description	DC-DC LED DRIVER
Detailed Description	700mA 3.3 ~ 36V Constant Current LED Driver Topology 1 Output
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount LED Drivers
Manufacturer		GAPTEC Electronic
Series		LEDW10_24_A
Packaging		Bulk
Part Status		Last Time Buy
Package / Case		6-DIP Module
Size / Dimension		0.88" L x 0.49" W x 0.36" H (22.3mm x 12.6mm x 9.1mm)
Voltage - Output		3.3 ~ 36V
Mounting Type		Through Hole
Type		Constant Current
Operating Temperature		-40°C ~ 71°C
Voltage - Input (Max)		48V
Efficiency		96%
Current - Output (Max)		700mA
Dimming		Analog
Voltage - Input (Min)		5.5V
Power (Watts)		25 W
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LEDW10_24-700A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
