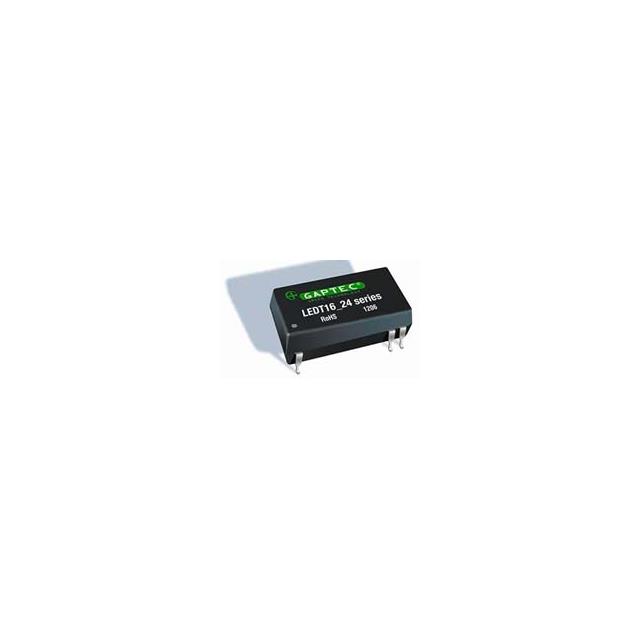

LEDT16_24-700

LEDT16_24-700

Part Number	LEDT16_24-700
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-LEDT16_24-700-ND 3182-LEDT16_24-700TR 3182-LEDT16_24-700TR-ND 3182-LEDT16_24-700DKR-ND 3182-LEDT16_24-700CTINACTIVE 3182-LEDT16_24-700DKR 3182-LEDT16_24-700 3182-LEDT16_24-700-ND LEDT16_24-700TB 3182-LEDT16_24-700CT-ND 3182-LEDT16_24-700DKRINACTIVE 3182-LEDT16_24-700CT
Description	DC-DC LED DRIVER
Detailed Description	700mA 3.3 ~ 36V Constant Current LED Driver Topology 1 Output
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount LED Drivers
Manufacturer		GAPTEC Electronic
Series		LEDD16_24
Packaging		Tube
Part Status		Last Time Buy
Package / Case		16-SMD Module, 6 Leads
Size / Dimension		0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)
Voltage - Output		3.3 ~ 36V
Mounting Type		Surface Mount
Type		Constant Current
Operating Temperature		-40°C ~ 71°C
Voltage - Input (Max)		48V
Efficiency		96%
Current - Output (Max)		700mA
Dimming		Analog, PWM
Voltage - Input (Min)		5.5V
Power (Watts)		25 W
Number of Outputs		1
Standard Number		60950-1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LEDT16_24-700

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
