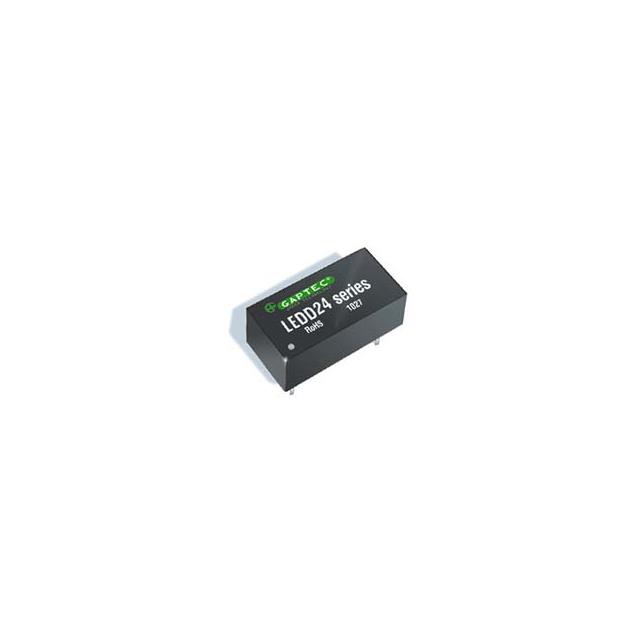

LEDD24_24-1200P

LEDD24_24-1200P

Part Number	LEDD24_24-1200P
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-LEDD24_24-1200P-ND 3182-LEDD24_24-1200PDKR 3182-LEDD24_24-1200PDKR-ND 3182-LEDD24_24-1200PTR-ND 3182-LEDD24_24-1200PCTINACTIVE 3182-LEDD24_24-1200PCT 3182-LEDD24_24-1200P 3182-LEDD24_24-1200P-ND 3182-LEDD24_24-1200PCT-ND 3182-LEDD24_24-1200PTR 3182-LEDD24_24-1200PDKRINACTIVE
Description	DC-DC LED DRIVER
Detailed Description	1.2A 3.3 ~ 36V Constant Current LED Driver Topology 1 Output
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount LED Drivers
Manufacturer		GAPTEC Electronic
Series		LEDD24_24
Packaging		Tube
Part Status		Last Time Buy
Package / Case		24-DIP Module, 10 Leads
Size / Dimension		1.25" L x 0.80" W x 0.50" H (31.7mm x 20.3mm x 12.7mm)
Voltage - Output		3.3 ~ 36V
Mounting Type		Through Hole
Type		Constant Current
Operating Temperature		-40°C ~ 85°C
Voltage - Input (Max)		48V
Efficiency		97%
Current - Output (Max)		1.2A
Dimming		PWM
Voltage - Input (Min)		5.5V
Power (Watts)		43 W
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LEDD24_24-1200P

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
