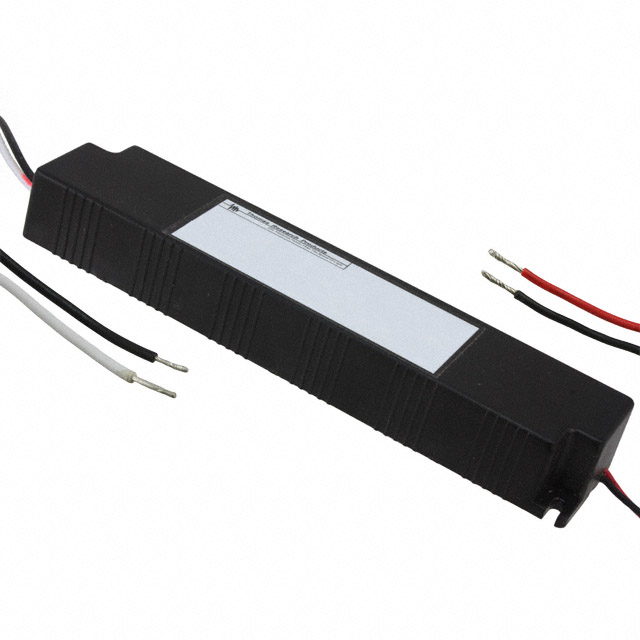

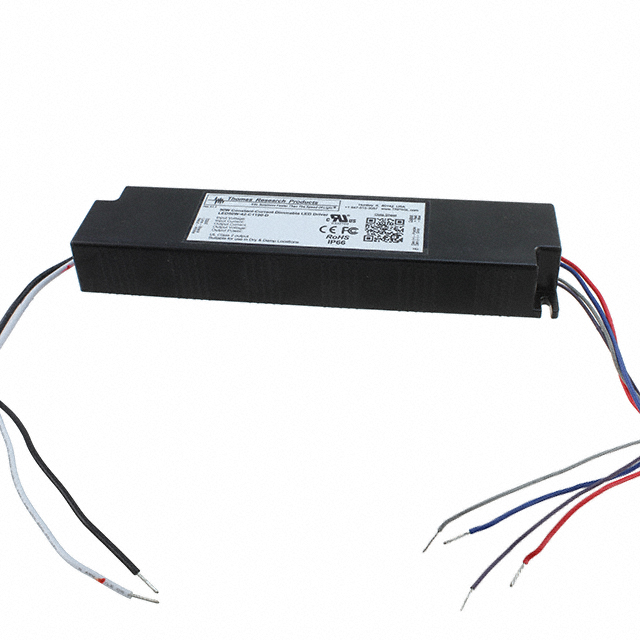

LED50W-012-C4200-D _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	LED50W-012-C4200-D
Manufacturer	Thomas Research Products (Current Lighting)
Other Part Numbers	LED50W-012-C4200-D-ND 93056522
Description	LED DRIVER CC AC/DC 4-12V 4.2A
Detailed Description	4.2A 6 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		Thomas Research Products (Current Lighting)
Series		LED-50W
Packaging		Box
Part Status		Obsolete
Features		OCP, OVP, SCP
Size / Dimension		7.64" L x 1.69" W x 0.98" H (194.0mm x 43.0mm x 25.0mm)
Voltage - Output		6 ~ 12V
Type		Constant Current
Operating Temperature		-30°C ~ 60°C
Termination Style		Wire Leads
Voltage - Input (Max)		305VAC
Approval Agency		CE, cULus
Ratings		IP66
Efficiency		84%
Topology		AC DC Converter
Current - Output (Max)		4.2A
Dimming		Analog
Voltage - Input (Min)		90VAC
Power (Watts)		50 W
Number of Outputs		1
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
