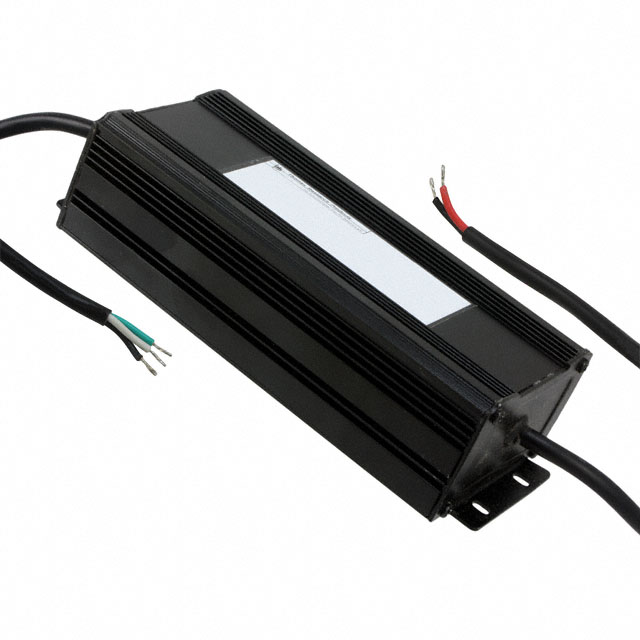

LED100W-095-C1050-D _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	LED100W-095-C1050-D
Manufacturer	Thomas Research Products (Current Lighting)
Other Part Numbers	1121-1145-ND 93056324 1121-1145 LED100W095C1050D
Description	LED DRIVER CC AC/DC 31-95V 1.05A
Detailed Description	1.05A 31 ~ 95V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		Thomas Research Products (Current Lighting)
Series		LED-100W
Packaging		Box
Part Status		Obsolete
Features		OCP, OVP, SCP
Size / Dimension		6.42" L x 2.81" W x 1.83" H (163.0mm x 71.3mm x 46.5mm)
Voltage - Output		31 ~ 95V
Type		Constant Current
Operating Temperature		-30°C ~ 65°C
Termination Style		Wire Leads
Voltage - Input (Max)		305VAC
Approval Agency		CE, CSA, cULus, EN
Ratings		IP66
Efficiency		91%
Topology		AC DC Converter
Current - Output (Max)		1.05A
Dimming		Analog
Voltage - Input (Min)		90VAC
Power (Watts)		100 W
Number of Outputs		1
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9520
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
