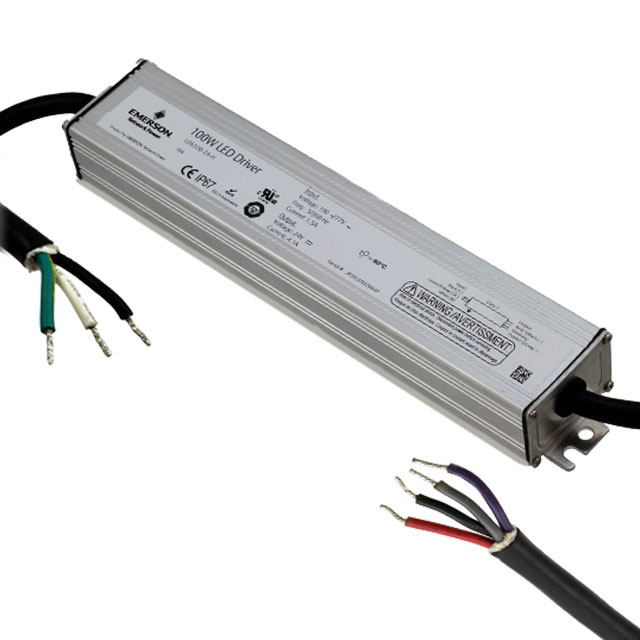

LDS100-24-H04 _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	LDS100-24-H04
Manufacturer	Emerson Embedded Power (ARTESYN)
Other Part Numbers	454-1584-ND LDS100-24-H04-ND 454-1584
Description	LED DRIVER CC/CV AC/DC 24V 4.1A
Detailed Description	4.1A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		Emerson Embedded Power (ARTESYN)
Series		LDS100 (100W)
Packaging		Bulk
Part Status		Obsolete
Features		OTP, OVP, SCP
Size / Dimension		8.46" L x 1.65" W x 1.18" H (215.0mm x 42.0mm x 30.0mm)
Voltage - Output		24V
Mounting Type		Chassis Mount
Type		Constant Current, Voltage
Operating Temperature		-40°C ~ 90°C
Termination Style		Wire Leads
Voltage - Input (Max)		305VAC
Approval Agency		CE, CSA, EN, UL
Ratings		IP67
Efficiency		90%
Topology		AC DC Converter
Current - Output (Max)		4.1A
Dimming		Analog, PWM
Voltage - Input (Min)		90VAC
Power (Watts)		100 W
Number of Outputs		1
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9520
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
