LCW W5SN-KXLX-4O9Q-0-700-R18-Z

Part Number
LCW W5SN-KXLX-4O9Q-0-700-R18-Z
Manufacturer ams-OSRAM USA INC.
Other Part Numbers
475-LCWW5SN-KXLX-4O9Q-0-700-R18-ZTR-ND
LCW W5SN-KXLX-4O9Q-Z
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZCT
475-LCWW5SN-KXLX-4O9Q-0-700-R18-ZCT
475-LCWW5SN-KXLX-4O9Q-0-700-R18-ZDKR
LCWW5SN-KXLX-4O9Q-Z
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZDKR
LCW W5SN-KXLX-4O9Q
Q65110A7708
LCWW5SNKXLX4O9Q
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZDKR-ND
475-2625-6
LCWW5SN-KXLX-4O9Q
475-LCWW5SN-KXLX-4O9Q-0-700-R18-ZTR
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZCT-ND
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZTR
475-2625-6-ND
475-2625-2-ND
4991-LCWW5SN-KXLX-4O9Q-0-700-R18-ZTR-ND
LCWW5SNKXLX4O9QZ
475-2625-1-ND
475-2625-1
475-2625-2

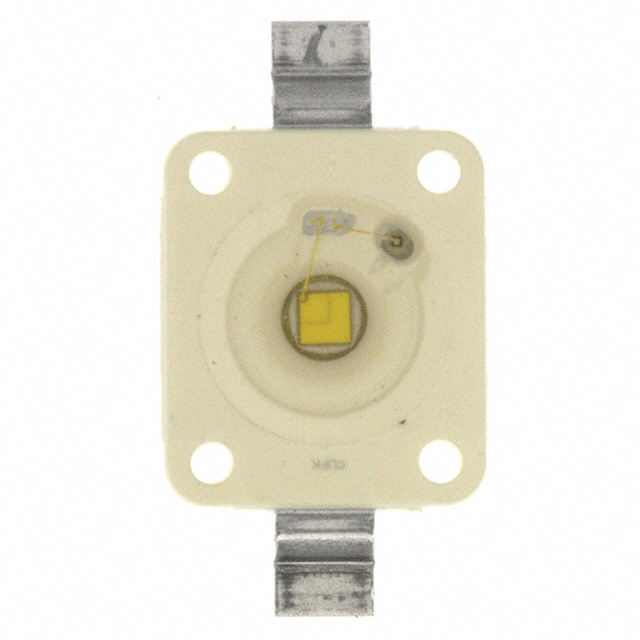

Description LED PLAT DRAGON WARM WHITE 2SMD
Detailed Description LED Lighting Platinum DRAGON White, Warm 3500K 3.6V 700mA 120° 2-SMD, Gull Wing Exposed Pad
Datasheet Datasheet

Product Attributes

Category
Manufacturer ams-OSRAM USA INC.
Series
Platinum DRAGON
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 2-SMD, Gull Wing Exposed Pad
Color White, Warm
Size / Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Mounting Type Surface Mount
Voltage - Forward (Vf) (Typ) 3.6V
Current - Test 700mA
Viewing Angle 120°
Current - Max 1A
Supplier Device Package 2-SMD
Lumens/Watt @ Current - Test 40 lm/W
Height - Seated (Max) 0.079" (2.00mm)
CCT (K) 3500K
CRI (Color Rendering Index) 80
Flux @ 25°C, Current - Test 101lm (71lm ~ 130lm)
Thermal Resistance of Package 11°C/W

Documents & Media

RESOURCE TYPE LINK
Datasheets LCW W5SN-KXLX-4O9Q-0-700-R18-Z

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
