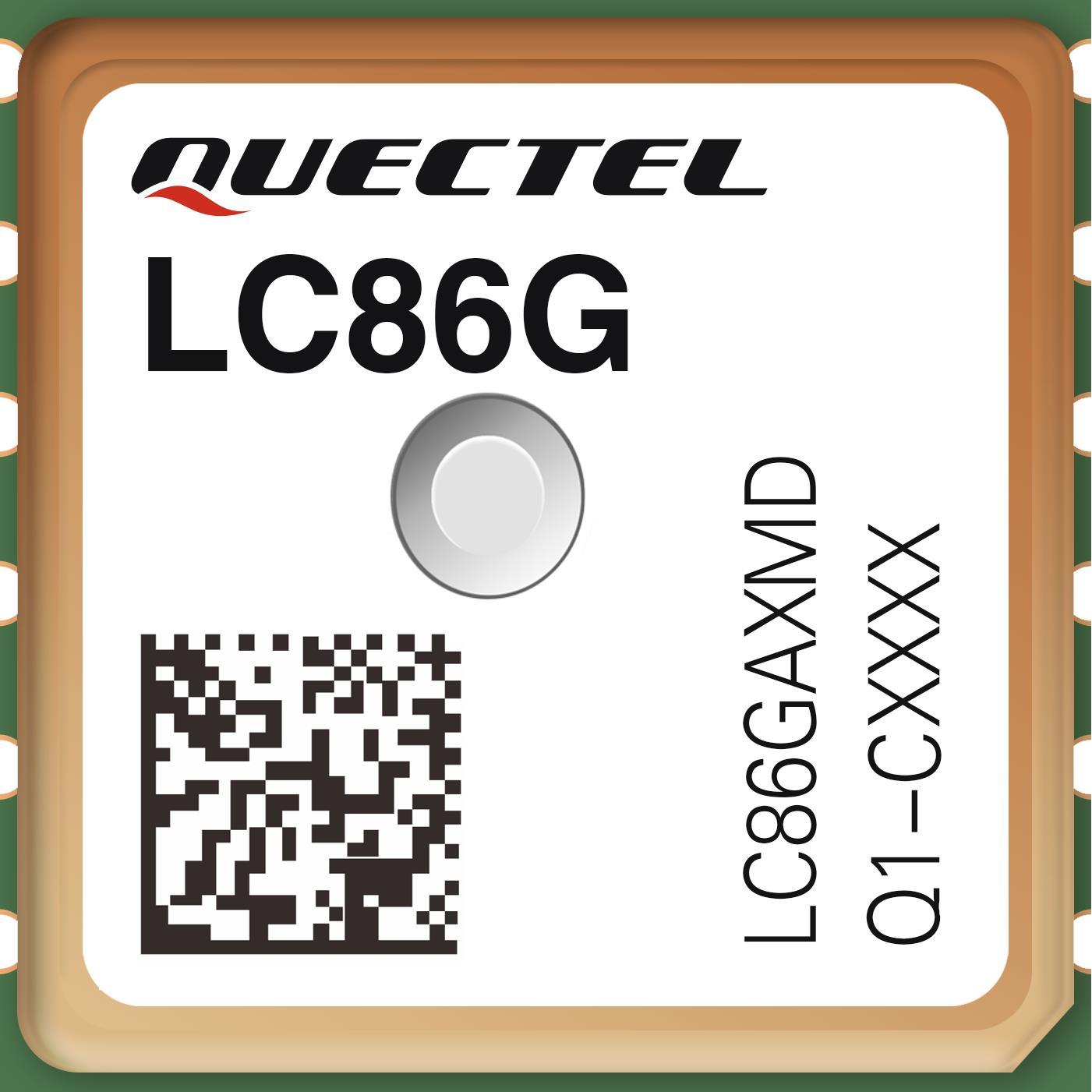

LC86GABMD

Part Number
LC86GABMD
Manufacturer Quectel
Other Part Numbers
2958-LC86GABMDTR-ND
2958-LC86GABMDCT-ND
2958-LC86GABMDDKR-ND
2958-LC86GABMDTR
2958-LC86GABMDDKR
2958-LC86GABMDCT
Description RF TXRX MOD NAV/CER PATCH SMD
Detailed Description Navigation BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS Transceiver Module Integrated, Chip Surface Mount
Manufacturer Standard Lead Time 8 weeks

Product Attributes

Category
Manufacturer Quectel
Series
LC86G
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 12-SMD Module
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2.55V ~ 3.6V
RF Family/Standard Navigation
Serial Interfaces UART

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
