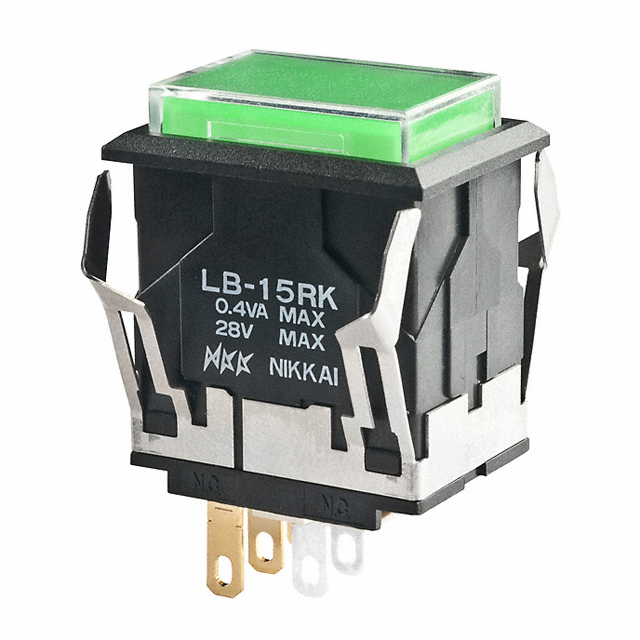

LB15RKG01-6F-JF _ Pushbutton Switches_Switches

Part Number	LB15RKG01-6F-JF
Manufacturer	NKK Switches
Other Part Numbers	360-3909-ND 3937-LB15RKG01-6F-JF 360-3909 LB15RKG01-6F-JF-ND
Description	SWITCH PUSH SPDT 0.4VA 28V
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		NKK Switches
Series		LB
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPDT
Type		Standard, Illuminated
Switch Function		On-Mom
Operating Temperature		-25°C ~ 50°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Green
Illumination Voltage (Nominal)		3.3 VDC
Actuator Type		Rectangular, Button
Panel Cutout Dimensions		Rectangular - 22.40mm x 16.20mm
Color - Actuator/Cap		Clear (Green Filter/Diffuser)
Actuator Marking		No Marking
Voltage Rating - AC		28 V
Voltage Rating - DC		28 V

RESOURCE TYPE		LINK
Datasheets		LB15RKG01-6F-JF
Datasheets		NKK Switches ODC Cert
Datasheets		RoHS Cert - Switches & Pushbuttons
Datasheets		NKK Switches PFOS & PFOA Free Cert

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
