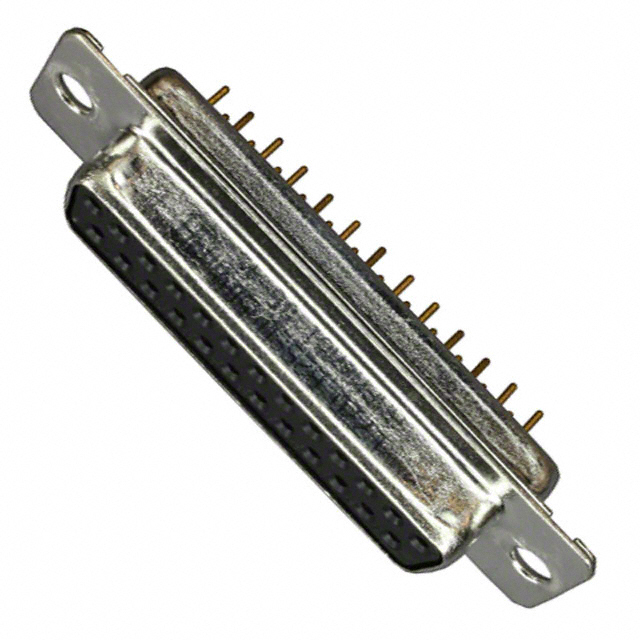

L77DB25SU _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	L77DB25SU
Manufacturer	Amphenol ICC (Commercial Products)
Other Part Numbers	L77DB25SU-ND 2266-L77DB25SU
Description	CONN D-SUB RCPT 25POS VERT SLDR
Detailed Description	25 Position D-Sub Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		Amphenol ICC (Commercial Products)
Series		D
Packaging		Tray
Part Status		Active
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Black
Voltage Rating		300V
Current Rating (Amps)		7.5A
Mounting Type		Through Hole
Number of Positions		25
Number of Rows		2
Operating Temperature		-55°C ~ 125°C
Contact Type		Signal
Flange Feature		Housing/Shell (Unthreaded)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		8.00µin (0.203µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Thermoplastic, Glass Filled
Shell Material, Finish		Steel, Tin Plated
Contact Material		Brass
Shell Size, Connector Layout		3 (DB, B)
Contact Form		Machined

RESOURCE TYPE		LINK
Datasheets		L77DB25SU
Datasheets		Multiple Devices Marking 17/Dec/2018
Datasheets		L7 Series

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.
