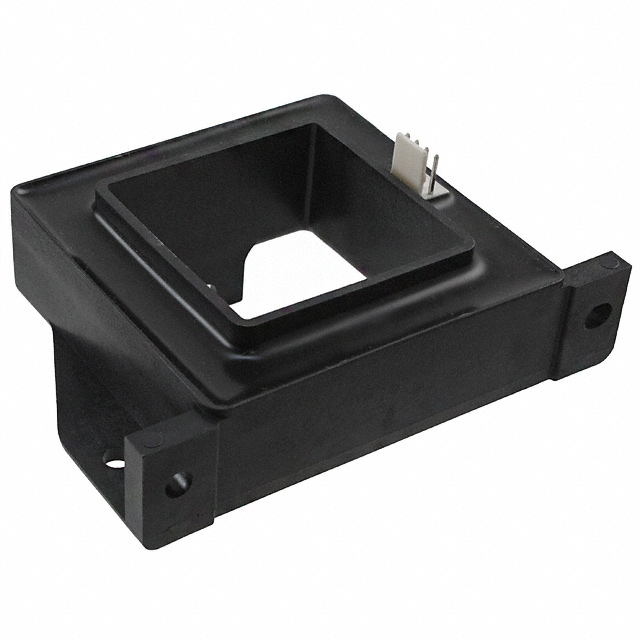

L34S1T0D15T

Part Number
L34S1T0D15T
Manufacturer Tamura
Other Part Numbers
132-L34S1T0D15T-ND
132-L34S1T0D15T
Description CURRENT SENSOR (1000A; 15V)
Detailed Description Current Sensor 1000A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Manufacturer Standard Lead Time 26 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Tamura
Series
L34S D15T
Packaging
Tray
Part Status Active
Package / Case Module, Single Pass Through
Polarization Bidirectional
Mounting Type Chassis Mount
Output Ratiometric, Voltage
Frequency DC ~ 25kHz
Operating Temperature -40°C ~ 105°C
Voltage - Supply ±12V ~ 15V
Response Time 5µs
Sensor Type Hall Effect, Open Loop
Linearity ±0.5%
For Measuring AC/DC
Current - Supply (Max) 25mA
Current - Sensing 1000A
Number of Channels 1

Documents & Media

RESOURCE TYPE LINK
Datasheets L34S1T0D15T
Datasheets Multiple Devices Location 10/Sep/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 9030.33.3800
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 20

Can ship immediately.
