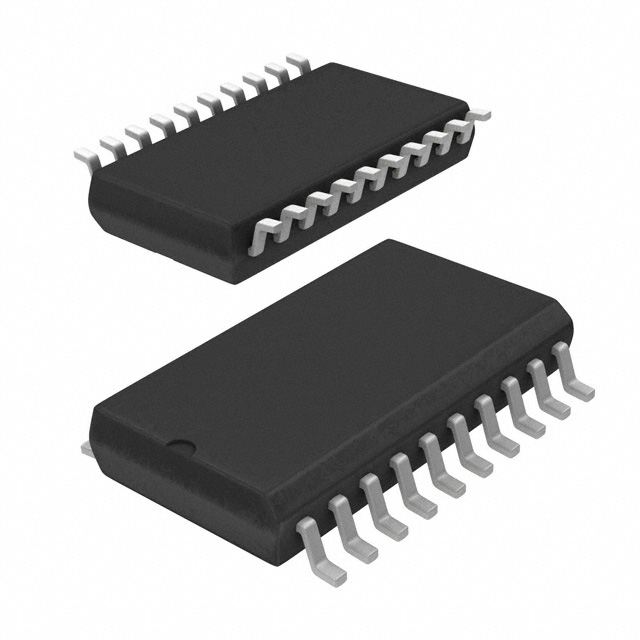

L297D013TR

Part Number
L297D013TR
Manufacturer STMicroelectronics
Other Part Numbers
497-3623-2-ND
497-3623-1-ND
497-3623-6-ND
497-3623-6
497-3623-1-NDR
497-3623-2-NDR
497-3623-1
497-3623-2
Description IC MOTOR DRV BIPOLAR/UNIPLR 20SO
Detailed Description Bipolar, Unipolar Motor Driver Parallel 20-SO
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 20-SOIC (0.295", 7.50mm Width)
Mounting Type Surface Mount
Function Controller - Commutation, Direction Management
Interface Parallel
Operating Temperature -40°C ~ 150°C (TJ)
Output Configuration Pre-Driver - Half Bridge (4)
Voltage - Supply 4.75V ~ 7V
Applications General Purpose
Supplier Device Package 20-SO
Motor Type - Stepper Bipolar, Unipolar
Step Resolution 1, 1/2
