L201314A-251LHF

Part Number
L201314A-251LHF
Manufacturer ITG Electronics, Inc.
Other Part Numbers
3013-L201314A-251LHF-ND
3013-L201314A-251LHF
Description 250.00UH, 15%, 112.00MOHM, 3.6A.

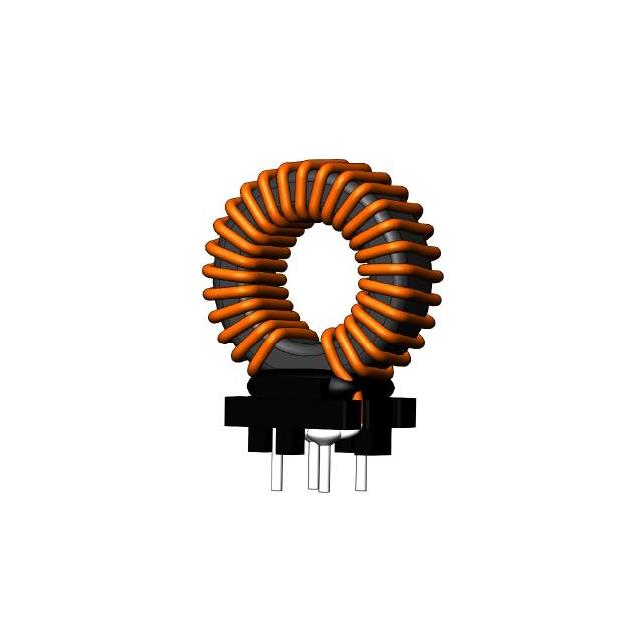

Detailed Description 250 µH Toroidal Inductor 3.6 A 112mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Datasheet Datasheet

Product Attributes

Category
Manufacturer ITG Electronics, Inc.
Series
L201314A
Packaging
Tray
Part Status Active
Tolerance ±15%
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Size / Dimension 0.984" L x 0.610" W (25.00mm x 15.50mm)
Mounting Type Through Hole
Type Toroidal
Operating Temperature -55°C ~ 130°C
DC Resistance (DCR) 112mOhm Max
Current - Saturation (Isat) 2A
Material - Core Sendust
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 1.161" (29.50mm)
Inductance 250 µH
Current Rating (Amps) 3.6 A

Documents & Media

RESOURCE TYPE LINK
Datasheets L201314A-251LHF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
