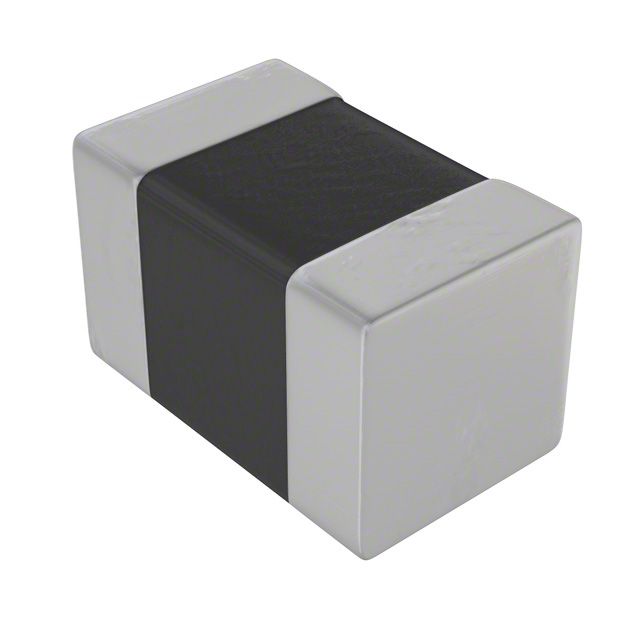

L0805220GEWTR\O _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	L0805220GEWTR\O
Manufacturer	KYOCERA AVX
Other Part Numbers	L0805220GEWTR\O-ND
Description	FIXED IND 22NH 500MA 400MOHM SMD
Detailed Description	22 nH Unshielded Thin Film Inductor 500 mA 400mOhm Max 0805 (2012 Metric)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		KYOCERA AVX
Series		Accu-L®
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±2%
Package / Case		0805 (2012 Metric)
Size / Dimension		0.083" L x 0.059" W (2.11mm x 1.50mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Thin Film
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		400mOhm Max
Q @ Freq		36 @ 450MHz
Frequency - Self Resonant		1.4GHz
Material - Core		Non-Magnetic
Inductance Frequency - Test		450 MHz
Supplier Device Package		0805 (2012 Metric)
Height - Seated (Max)		0.041" (1.04mm)
Inductance		22 nH
Current Rating (Amps)		500 mA

RESOURCE TYPE		LINK
Datasheets		L0805220GEWTR\O

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
