Part Number |
KTPS50-2421DT 3P
|
---|---|
Manufacturer | Volgen (Kaga Electronics USA) |
Other Part Numbers |
62-1178-ND
62-1178
KTPS502421DT3P
|

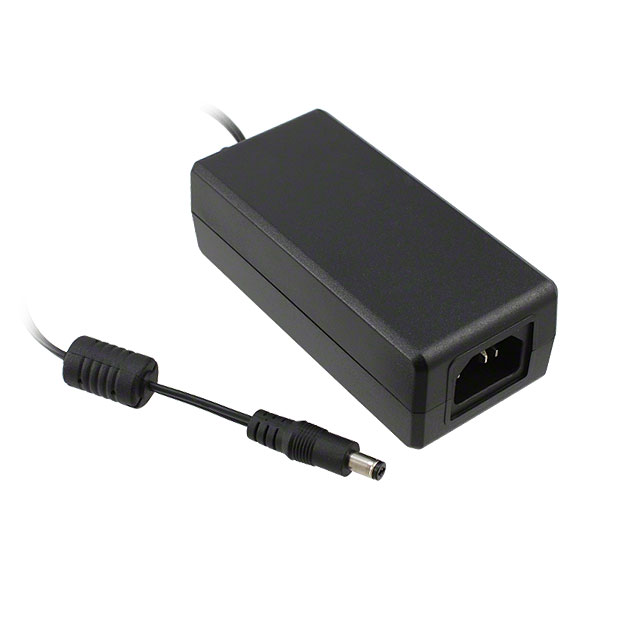

Description | AC/DC DESKTOP ADAPTER 24V 50W |
Detailed Description | 24V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input |
Category | ||
---|---|---|
Manufacturer | Volgen (Kaga Electronics USA) | |
Series |
KTPS50 (50W)
|
|
Packaging |
Box
|
|
Part Status | Obsolete | |
Size / Dimension | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | |
Voltage - Output | 24V | |
Polarization | Positive Center | |
Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | |
Voltage - Input | 100 ~ 240 VAC | |
Cord Length | 59" (1.50m) | |
Operating Temperature | 0°C ~ 40°C | |
Applications | ITE (Commercial) | |
Input Type | Cord (Sold Separately) | |
Approval Agency | IEC | |
Form | Desktop (Class I) | |
Efficiency | Level V | |
Current - Output (Max) | 2.1A | |
Input Connector | IEC 320-C14 | |
Region Utilized | International | |
Power (Watts) | 50 W | |
Standard Number | 60950-1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.7001 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | RoHS Compliant |
