KTC3500EVAC-TB _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	KTC3500EVAC-TB
Manufacturer	Kinetic Technologies
Other Part Numbers	2763-KTC3500EVAC-TB-ND 2763-KTC3500EVAC-TB
Description	3.5V TO 60V INPUT BOOST/SEPIC/FL
Detailed Description	Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-DFN (3x3)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		Kinetic Technologies
Series
Packaging		Tray
Part Status		Active

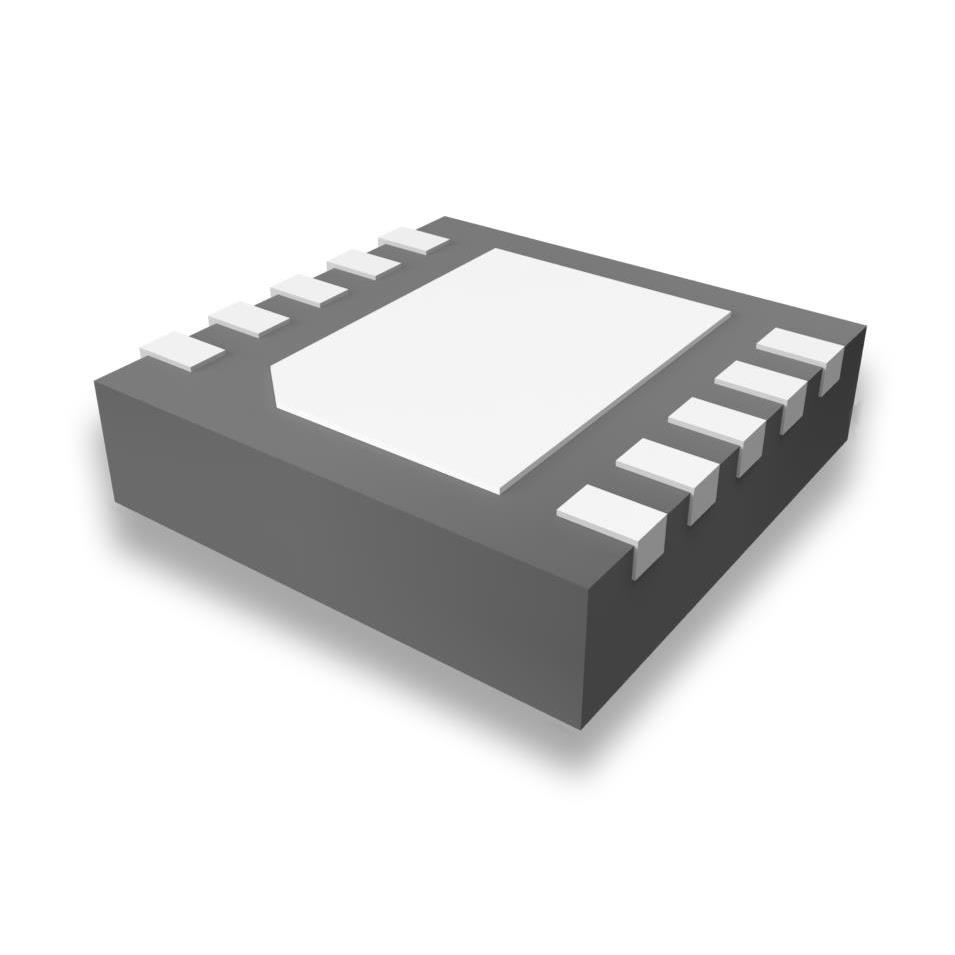

Package / Case		10-WFDFN Exposed Pad
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Up, Step-Up/Step-Down
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		100kHz ~ 1.2MHz
Topology		Boost, Flyback, SEPIC
Voltage - Supply (Vcc/Vdd)		6V ~ 60V
Supplier Device Package		10-DFN (3x3)
Synchronous Rectifier		No
Control Features		Current Limit, Enable, Frequency Control, Soft Start
Output Phases		1
Duty Cycle (Max)		90%
Clock Sync		No
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		KTC3500EVAC-TB

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
