KSF30F60B

Part Number
KSF30F60B
Manufacturer KYOCERA AVX
Other Part Numbers
478-KSF30F60B-ND
478-KSF30F60B
1253-KSF30F60B
1253-KSF30F60B-ND
Description DIODE GEN PURP 600V 30A TO247
Detailed Description Diode 600 V 30A Through Hole TO-247
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer KYOCERA AVX
Series
Packaging
Tube
Part Status Active

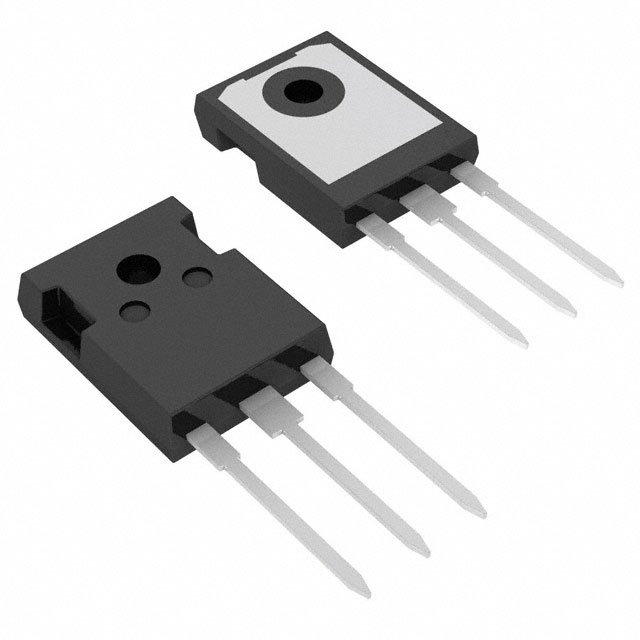

Package / Case TO-247-3
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 60 ns
Technology Standard
Current - Average Rectified (Io) 30A
Supplier Device Package TO-247
Operating Temperature - Junction -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 30 A
Current - Reverse Leakage @ Vr 50 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK
Datasheets KSF30F60B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
