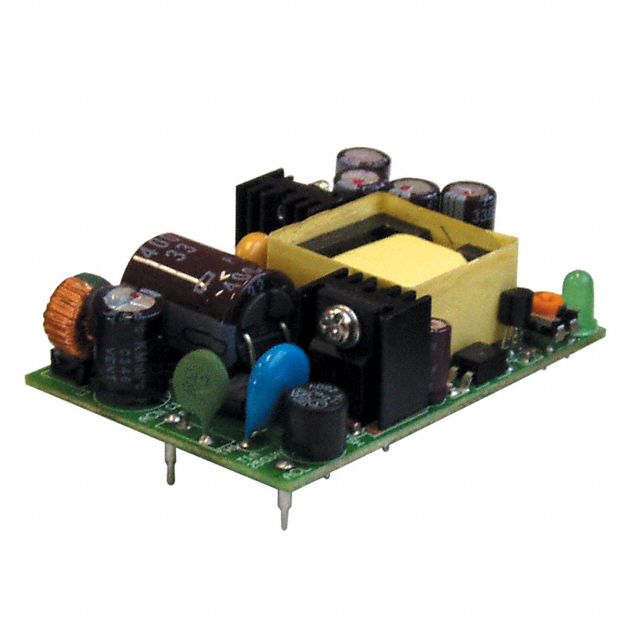

KPS5-15 _ AC DC Converters_Power Supplies

Part Number	KPS5-15
Manufacturer	TDK-Lambda, Inc.
Other Part Numbers	285-KPS5-15-ND 285-KPS5-15 285-1418 KPS515 KPS5-15 285-1418-ND
Description	AC/DC CONVERTER 15V 5W
Detailed Description	Open Frame AC DC Converters 1 Output 15V 330mA 85 ~ 264 VAC Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		TDK-Lambda, Inc.
Series		KPS (5W)
Packaging		Bulk
Part Status		Obsolete
Features		Universal Input
Package / Case		4-DIP Module
Size / Dimension		2.17" L x 1.38" W x 0.79" H (55.1mm x 35.1mm x 20.1mm)
Mounting Type		Through Hole
Voltage - Input		85 ~ 264 VAC
Type		Open Frame
Weight		0.064 lb (29.03 g)
Operating Temperature		0°C ~ 70°C (With Derating)
Applications		ITE (Commercial)
Approval Agency		CE, CSA, EN, UL
Efficiency		70%
Current - Output (Max)		330mA
Load Regulation		±1%
Line Regulation		±0.5%
Voltage - Output 1		15V
Power (Watts)		5 W
Number of Outputs		1
Standard Number		60950-1

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant

This product is no longer manufactured.
