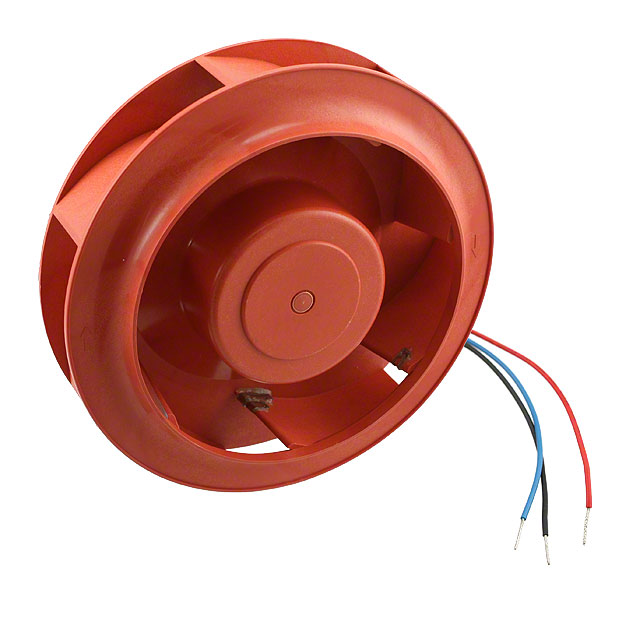

KHB1748VHS-F00

Part Number
KHB1748VHS-F00
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-1246-ND
603-1246
KHB1748VHSF00
Description FAN IMP MTRZD 175X54MM 48VDC
Detailed Description Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 247.5 CFM (6.93m³/min) 3 Wire Leads
Datasheet Datasheet

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
KHB
Packaging
Box
Part Status Obsolete
Features Speed Sensor (Tach)
Voltage - Rated 48VDC
Size / Dimension Round - 175mm Dia
Bearing Type Ball
Current Rating (Amps) 0.650A
RPM 3500 RPM
Air Flow 247.5 CFM (6.93m³/min)
Width 54.00mm
Weight 1.4 lbs (635.0 g)
Voltage Range 32 ~ 80VDC
Termination 3 Wire Leads
Approval Agency CE, CSA, UL, VDE
Fan Type Motorized Impellers
Noise 69.0dB(A)
Static Pressure 1.601 in H2O (398.8 Pa)
Material - Frame Aluminum
Material - Blade Plastic
Power (Watts) 31.2 W

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6560
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
