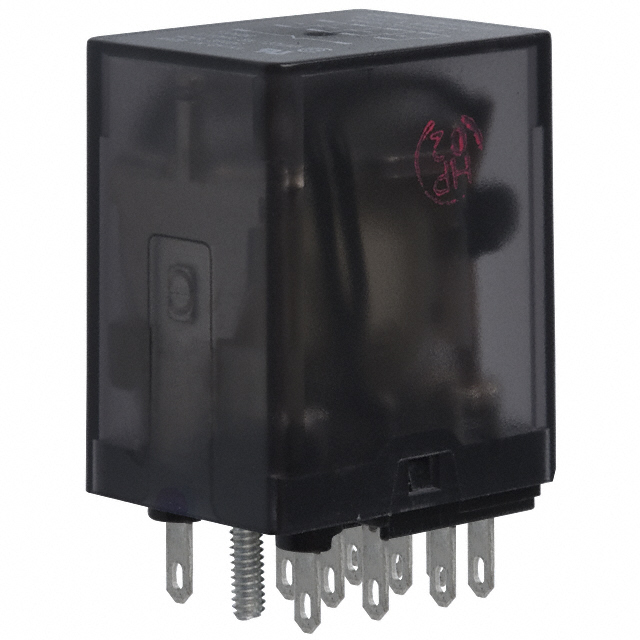

KHAE-17D11-24 _ Power Relays, Over 2 Amps_Relays

Part Number	KHAE-17D11-24
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	PB3152-ND PB3152 9-1393121-9 KHAE-17D11-24-ND
Description	RELAY GEN PURPOSE 4PDT 3A 24V
Detailed Description	General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
Manufacturer Standard Lead Time	48 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		KHA
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VDC
Operating Temperature		-45°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, UR
Relay Type		General Purpose
Coil Current		37.5 mA
Coil Type		Non Latching
Contact Material		Silver (Ag)
Contact Form		4PDT (4 Form C)
Contact Rating (Current)		3 A
Switching Voltage		240VAC - Nom
Must Operate Voltage		18 VDC
Operate Time		13 ms
Release Time		6 ms
Coil Insulation		Class B

RESOURCE TYPE		LINK
Datasheets		KHAE-17D11-24

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
