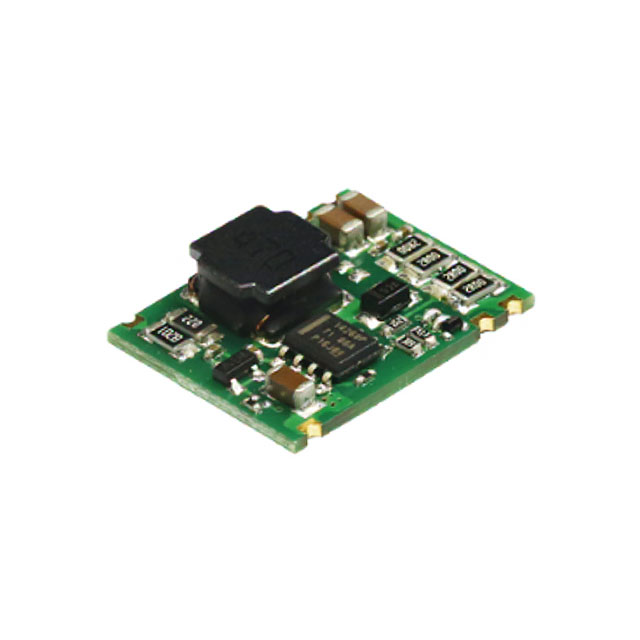

KC24JT-700R3 _ LED Drivers_Power Supplies

Part Number	KC24JT-700R3
Manufacturer	Mornsun
Other Part Numbers	2725-KC24JT-700R3TR-ND 2725-KC24JT-700R3CT-ND 2725-KC24JT-700R3DKR-ND 2725-KC24JT-700R3DKR 2725-KC24JT-700R3TR 2725-KC24JT-700R3CT
Description	LED DRIVER CC BUCK 2.8-33V 700MA
Detailed Description	700mA 2.8 ~ 33V Constant Current LED Driver Buck Topology 1 Output
Manufacturer Standard Lead Time	8 weeks

Category		Power Supplies - Board Mount LED Drivers
Manufacturer		Mornsun
Series		KC24JT-xxxR3
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Remote On/Off, SCP
Package / Case		16-SMD Module, 6 Leads
Size / Dimension		0.85" L x 0.66" W x 0.20" H (21.5mm x 16.7mm x 5.2mm)
Voltage - Output		2.8 ~ 33V
Mounting Type		Surface Mount
Type		Constant Current
Operating Temperature		-40°C ~ 71°C
Voltage - Input (Max)		36V
Approval Agency		CE, EN, UKCA
Efficiency		94%
Topology		Buck
Current - Output (Max)		700mA
Dimming		Analog, PWM
Voltage - Input (Min)		6V
Power (Watts)		23 W
Number of Outputs		1
Standard Number		62368-1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
