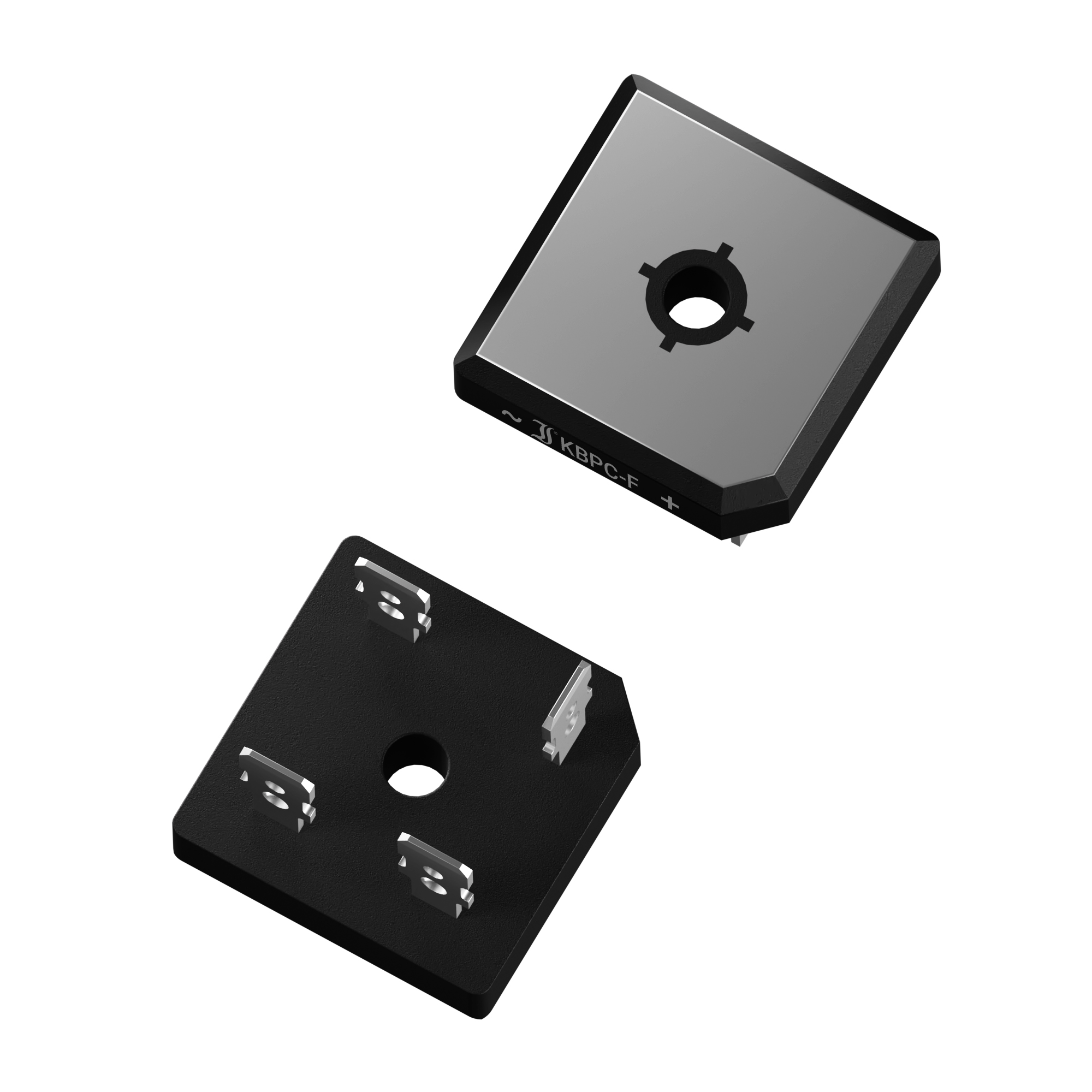

KBPC10/15/2516FP

KBPC10/15/2516FP

Part Number	KBPC10/15/2516FP
Manufacturer	Diotec Semiconductor
Other Part Numbers	4878-KBPC10/15/2516FP-ND 4878-KBPC10/15/2516FP
Description	BRIDGE 1PH KBPC 1600V 25A 150DEG
Detailed Description	Bridge Rectifier Single Phase Standard 1.6 kV Chassis Mount KBPC FP
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Bridge Rectifiers
Manufacturer		Diotec Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		4-Square, KBPC FP
Mounting Type		Chassis Mount
Diode Type		Single Phase
Operating Temperature		-50°C ~ 150°C (TJ)
Technology		Standard
Supplier Device Package		KBPC FP
Voltage - Peak Reverse (Max)		1.6 kV
Current - Average Rectified (Io)		25 A
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 12.5 A
Current - Reverse Leakage @ Vr		10 µA @ 1600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		KBPC10/15/2516FP
Datasheets		Diotec MDS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		Not Applicable

In Stock: 238

Can ship immediately.
