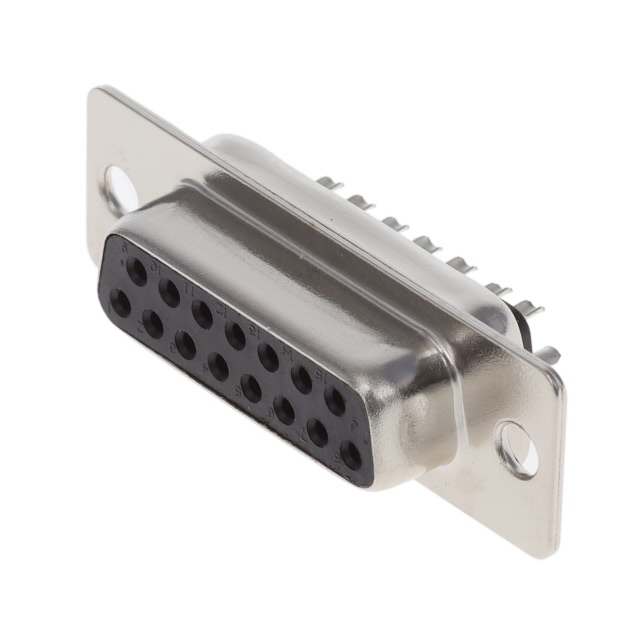

K85X-AA-15S _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	K85X-AA-15S
Manufacturer	Kycon
Other Part Numbers	2092-K85X-AA-15S-ND 2092-K85X-AA-15S
Description	CONN DSUB RCPT 15P VERT SLDR CUP
Detailed Description	15 Position D-Sub Receptacle, Female Sockets Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		Kycon
Series		K85X
Packaging		Tray
Part Status		Active
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Black
Voltage Rating		30V
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		15
Number of Rows		2
Operating Temperature		-55°C ~ 105°C
Contact Type		Signal
Flange Feature		Housing/Shell (Unthreaded)
Termination		Solder Cup
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish		Steel, Nickel Plated
Contact Material		Brass
Shell Size, Connector Layout		2 (DA, A)
Contact Form		Stamped

RESOURCE TYPE		LINK
Datasheets		K85X-AA-15S

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
