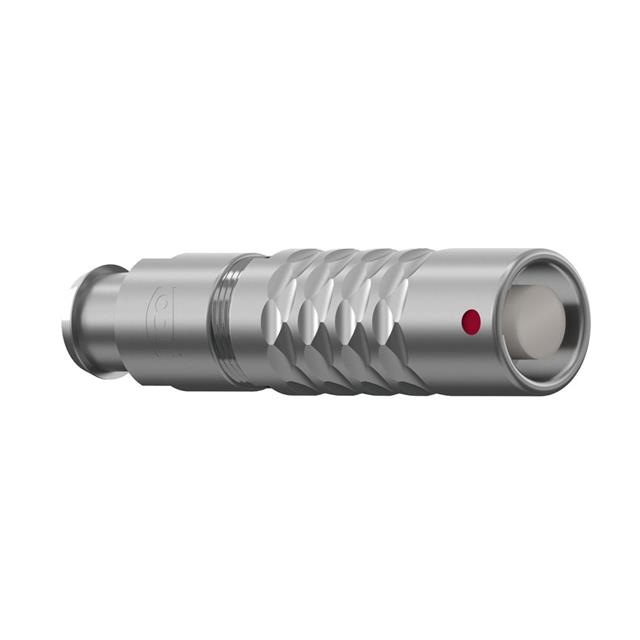

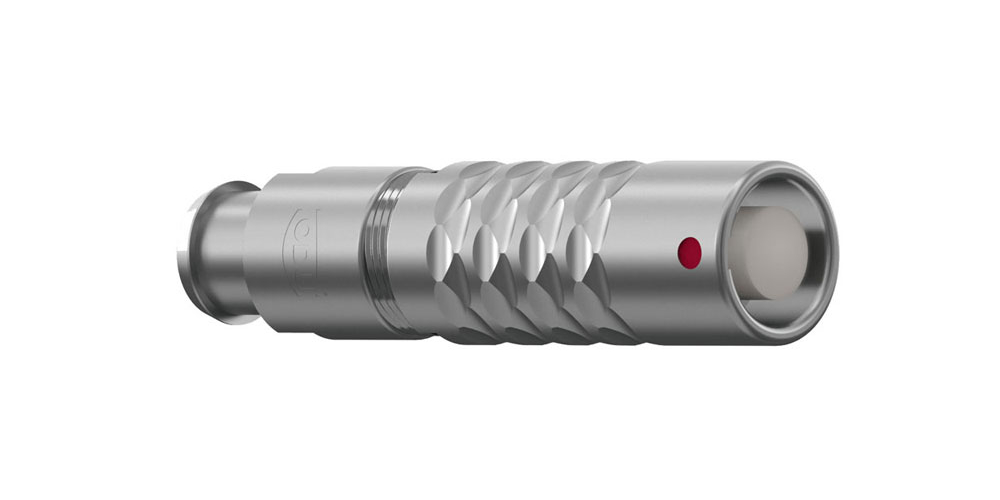

K20L0C-P09LCC0-420S _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	K20L0C-P09LCC0-420S
Manufacturer	ODU
Other Part Numbers	K20L0C-P09LCC0-420S-ND
Description	CONN RCPT FMALE 9P GOLD SLDR CUP
Detailed Description	9 Position Circular Connector Receptacle, Female Sockets Solder Cup
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		ODU
Series		ODU MINI-SNAP® L
Packaging		Bulk
Part Status		Active
Features		Backshell, Strain Relief
Connector Type		Receptacle, Female Sockets
Color		Silver
Current Rating (Amps)		4A
Mounting Type		Free Hanging (In-Line)
Shielding		Shielded
Number of Positions		9
Orientation		0
Shell Size - Insert		0
Operating Temperature		-40°C ~ 120°C
Applications		Industrial, Medical, Military, Testing Equipment & Measurement
Fastening Type		Push-Pull
Termination		Solder Cup
Ingress Protection		IP50 - Dust Protected
Cable Opening		0.118" ~ 0.165" (3.00mm ~ 4.20mm)
Contact Material		Brass
Contact Finish - Mating		Gold
Shell Material		Brass
Shell Finish		Chrome over Nickel
Insert Material		Polyetheretherketone (PEEK)
Backshell Material, Plating		Brass, Chrome over Nickel
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
