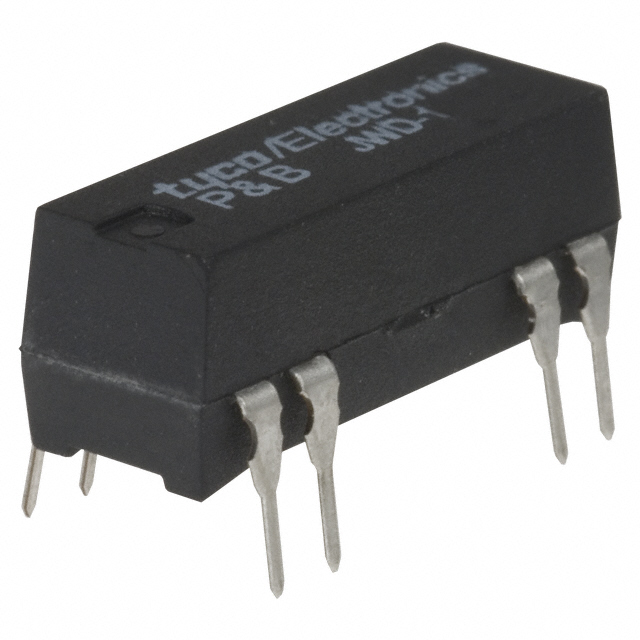

JWD-172-159 _ Reed Relays_Relays

Part Number	JWD-172-159
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	PB1970-ND -2-1393771-4-SI 213937714 2266-JWD-172-159 2-1393771-4 JWD-172-159-ND 2-1393771-4-ND PB1970
Description	RELAY REED SPDT 500MA 5V
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Relays Reed Relays
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		JWD
Packaging		Tube
Part Status		Active
Features		Diode
Mounting Type		Through Hole
Coil Voltage		5VDC
Operating Temperature		-35°C ~ 85°C
Termination Style		PC Pin
Coil Current		25 mA
Coil Type		Non Latching
Contact Material		Ruthenium (Ru)
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		500 mA
Switching Voltage		28VDC - Max
Must Release Voltage		0.5 VDC
Must Operate Voltage		3.8 VDC
Operate Time		1.5 ms
Release Time		3 ms

RESOURCE TYPE		LINK
Datasheets		JWD-172-159

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
