Part Number |
JUA1117AS-TR
|
---|---|
Manufacturer | Stanley Electric |
Other Part Numbers |
404-1278-2-ND
404-1278-1-ND
404-1278-6-ND
404-1278-2
JUA1117AS-TR-ND
404-1278-1
404-1278-6
|

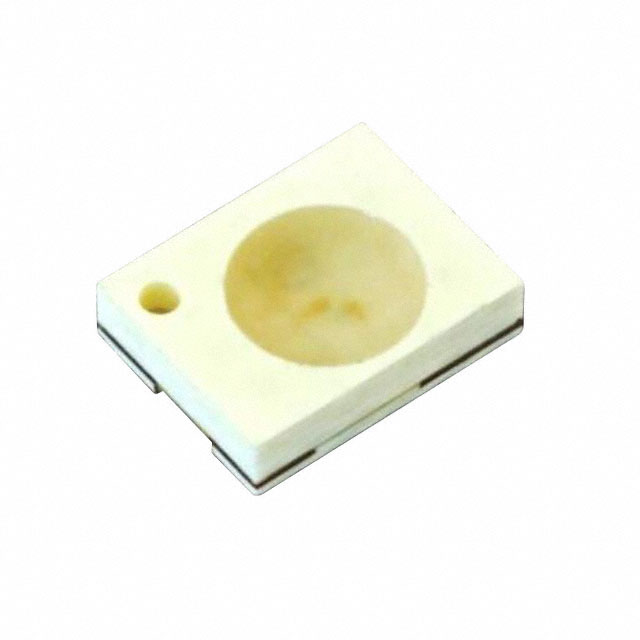

Description | LED ORANGE DIFFUSED SMD |
Detailed Description | Orange 605nm LED Indication - Discrete 2.1V 2-SMD, No Lead |
Category | ||
---|---|---|
Manufacturer | Stanley Electric | |
Series | ||
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Obsolete | |
Package / Case | 2-SMD, No Lead | |
Color | Orange | |
Size / Dimension | 2.40mm L x 1.85mm W | |
Mounting Type | Surface Mount | |
Millicandela Rating | 600mcd | |
Configuration | Standard | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Lens Color | White | |
Current - Test | 20mA | |
Viewing Angle | 120° | |
Height (Max) | 0.70mm | |
Wavelength - Dominant | 605nm | |
Lens Transparency | Diffused | |
Lens Style | Round with Flat Top | |
Lens Size | 1.45mm Dia |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.41.0000 | |
Moisture Sensitivity Level (MSL) | 4 (72 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
