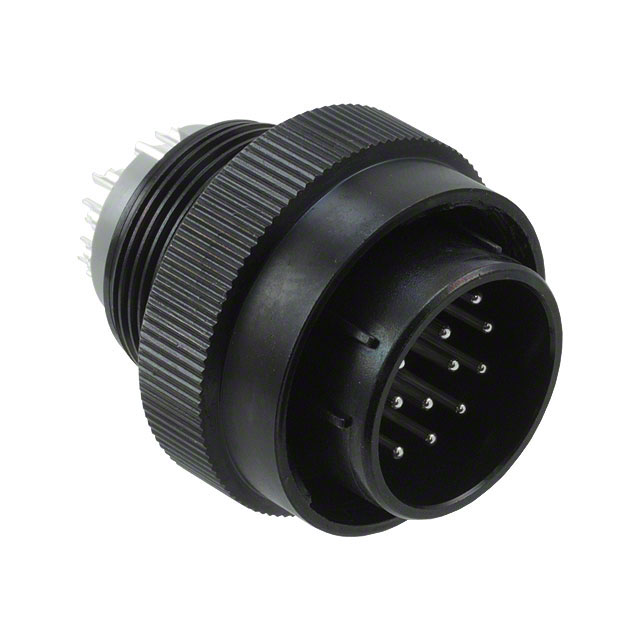

JL05-6A20-29P-R _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	JL05-6A20-29P-R
Manufacturer	JAE Electronics
Other Part Numbers	670-2032-ND -670-2032-ND JL056A2029PR 670-2032 -JL05-6A20-29P-R -670-2032
Description	CONN PLUG MALE 17POS SILV SOLDER
Detailed Description	17 (16 + PE) Position Circular Connector Plug, Male Pins Solder
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		JAE Electronics
Series		JL05
Packaging		Bulk
Part Status		Active
Features		Coupling Nut, Ground Lug
Connector Type		Plug, Male Pins
Color		Black
Current Rating (Amps)		13A
Mounting Type		Free Hanging (In-Line)
Number of Positions		17 (16 + PE)
Orientation		N (Normal)
Shell Size - Insert		20-29
Operating Temperature		-55°C ~ 125°C
Applications		Industrial, Marine, Telecommunications
Fastening Type		Bayonet Lock
Termination		Solder
Ingress Protection		IP67 - Dust Tight, Waterproof
Cable Opening		1.059" (26.90mm)
Contact Material		Copper Alloy
Contact Finish - Mating		Silver
Shell Material		Aluminum Alloy
Shell Finish		Zinc
Insert Material		Synthetic Resin
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
