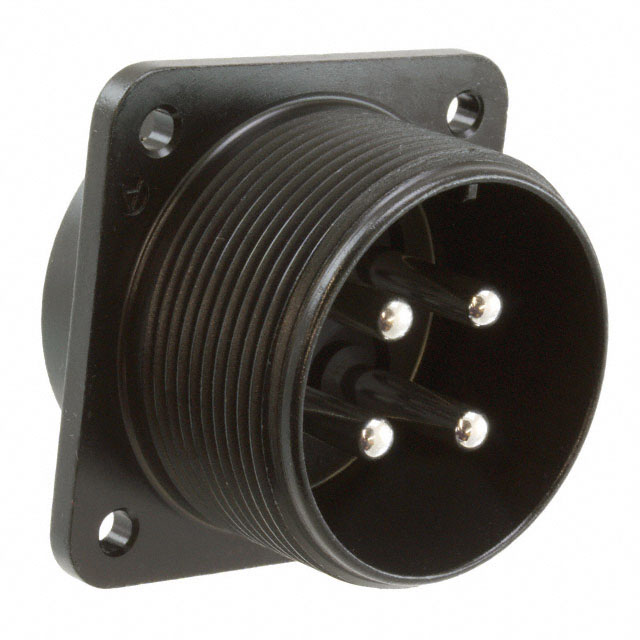

JL04HV-2E22-22PE-B-R _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	JL04HV-2E22-22PE-B-R
Manufacturer	JAE Electronics
Other Part Numbers	670-2117-ND -JL04HV-2E22-22PE-B-R 670-2117 -670-2117 -670-2117-ND JL04HV2E2222PEBR
Description	CONN RCPT MALE 4P SOLDER CUP
Detailed Description	4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		JAE Electronics
Series		JL04HV
Packaging		Bulk
Part Status		Active
Features		Ground
Connector Type		Receptacle, Male Pins
Color		Black
Current Rating (Amps)		46A
Mounting Type		Panel Mount
Number of Positions		4 (3 + PE)
Orientation		N (Normal)
Shell Size - Insert		22-22
Operating Temperature		-55°C ~ 125°C
Applications		Industrial, Medical, Telecommunications, Test Equipment & Measurement
Fastening Type		Threaded
Termination		Solder Cup
Ingress Protection		IP67 - Dust Tight, Waterproof
Cable Opening		1.299" (33.00mm)
Mounting Feature		Flange
Contact Material		Copper Alloy
Contact Finish - Mating		Silver
Shell Material		Aluminum Alloy
Shell Finish		Zinc
Insert Material		Silicon Rubber
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
