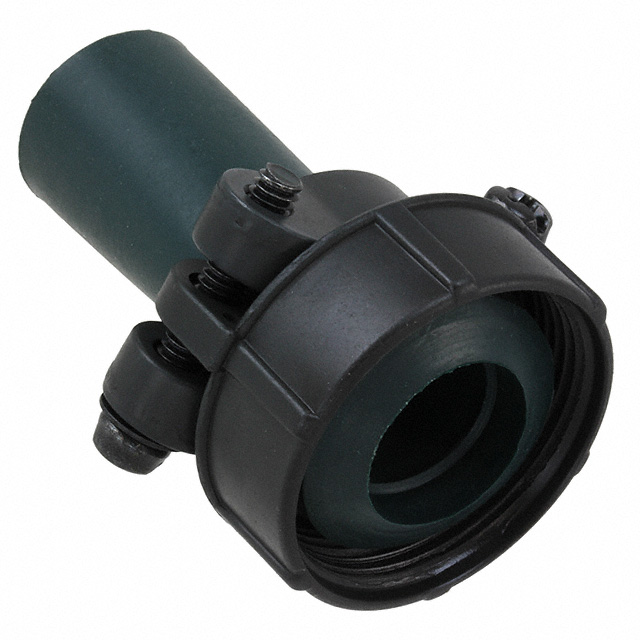

JL04-2022CK(14)-CR-R

JL04-2022CK(14)-CR-R

Part Number	JL04-2022CK(14)-CR-R
Manufacturer	JAE Electronics
Other Part Numbers	670-2122-ND JL042022CK14CRR -JL04-2022CK(14)-CR-R -670-2122-ND -670-2122 670-2122
Description	CONN CAB CLMP SZ20 22 1 3/16-18
Detailed Description	Black Connector Cable Clamp 1 3/16-18 UNEF-2B 20, 22
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Circular Connectors Backshells and Cable Clamps
Manufacturer		JAE Electronics
Series		JL04V
Packaging		Bag
Part Status		Active
Features		Bushing, Clamp Screws, Washers
Color		Black
For Use With/Related Products		JL04V Series Connectors
Material		Aluminum Alloy
Thread Size		1 3/16-18 UNEF-2B
Type		Cable Clamp
Shell Size - Insert		20, 22
Cable Exit		180°
Includes		9 pcs - 3 pc Cable Clamp, 1 Bushing, 2 Screws, 3 Washers
Ingress Protection		IP67 - Dust Tight, Waterproof
Plating		Zinc
Diameter - Outside		1.374" (34.90mm)
Cable Opening		0.630" (16.00mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		JL04-2022CK(14)-CR-R
Datasheets		Mult Device Part Status Chg 26/Jul/2017
Datasheets		JL04-CblCrmp_34.9
Datasheets		JL04_CblCrmp_End-16

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 10

Can ship immediately.
