JAN4N23A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	JAN4N23A
Manufacturer	TT Electronics / Optek Technology
Other Part Numbers	365-1954-ND 365-1954
Description	OPTOISO 1KV TRANS W/BASE TO78-6
Detailed Description	Optoisolator Transistor with Base Output 1000VDC 1 Channel TO-78-6

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		TT Electronics / Optek Technology
Series
Packaging		Bulk
Part Status		Obsolete

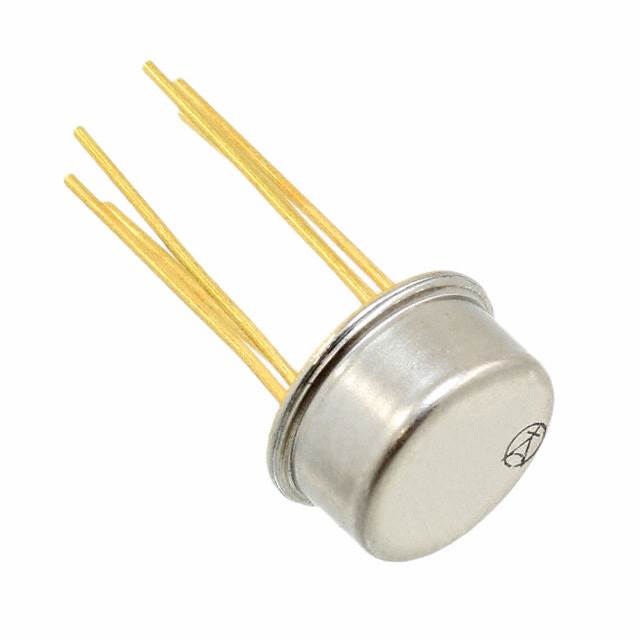

Package / Case		TO-78-6 Metal Can
Output Type		Transistor with Base
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.5V (Max)
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		1000VDC
Current Transfer Ratio (Min)		60% @ 10mA
Vce Saturation (Max)		300mV
Supplier Device Package		TO-78-6
Voltage - Output (Max)		40V
Rise / Fall Time (Typ)		20µs, 20µs (Max)
Number of Channels		1
Current - DC Forward (If) (Max)		40 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
