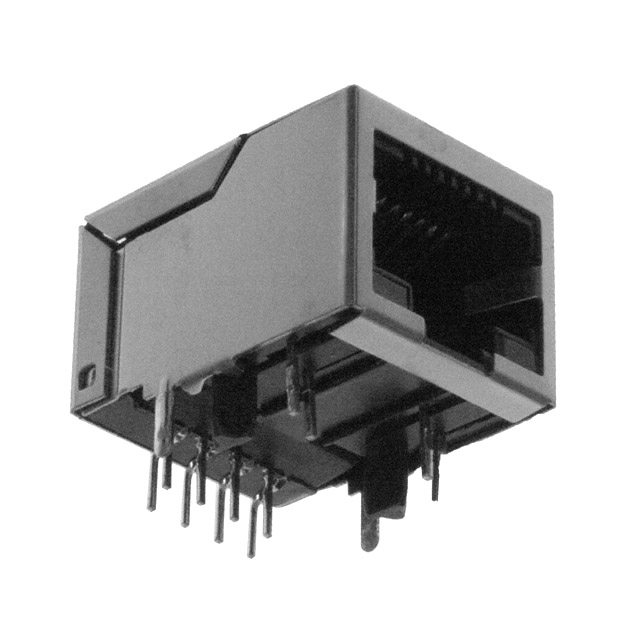

J0073D01BNL _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	J0073D01BNL
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-1490-ND 553-1490 J0073D01BNL-ND
Description	CONN JACK 1PORT 100 BASE-TX PCB
Detailed Description	1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		Pulse Larsen Antenna
Series		PULSEJACK™ J0
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		RJ45
Contact Finish		Gold
Mounting Type		Through Hole
Shielding		Shielded
Orientation		90° Angle (Right)
Operating Temperature		0°C ~ 70°C
Applications		10/100 Base-TX, AutoMDIX
Termination		Solder
LED Color		Green - Yellow
Number of Cores per Jack		4
Height Above Board		0.545" (13.84mm)
Tab Direction		Down
Contact Finish Thickness		50.0µin (1.27µm)
Shield Material		Brass
Contact Material		Phosphor Bronze
Housing Material		Thermoplastic
Number of Ports		1
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.
