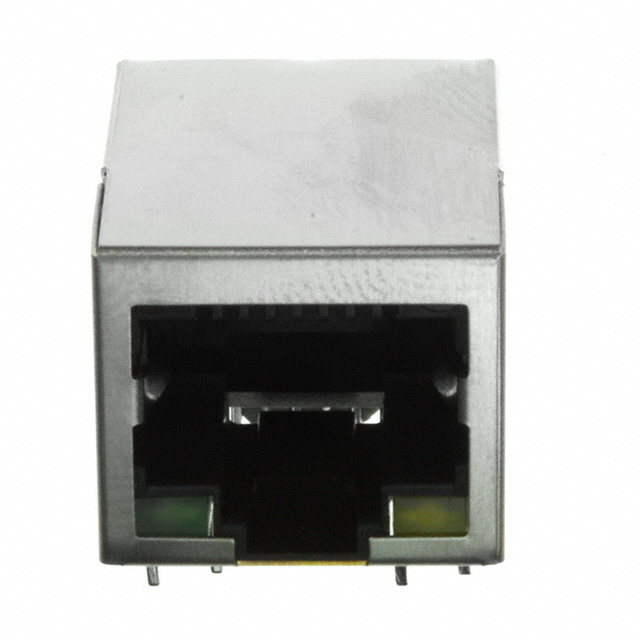

J0026D01BNL _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	J0026D01BNL
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-1486-ND J0026D01BNL-ND 2266-J0026D01BNL 553-1486
Description	CONN JACK 1PORT 100 BASE-TX PCB
Detailed Description	1 Port RJ45Through Hole 10/100 Base-TX
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		Pulse Larsen Antenna
Series		PULSEJACK™ J0
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		RJ45
Contact Finish		Gold
Mounting Type		Through Hole
Shielding		Shielded
Orientation		90° Angle (Right)
Operating Temperature		0°C ~ 70°C
Applications		10/100 Base-TX
Termination		Solder
LED Color		Green - Yellow
Number of Cores per Jack		5
Height Above Board		0.545" (13.84mm)
Tab Direction		Down
Contact Finish Thickness		15.0µin (0.38µm)
Shield Material		Brass
Contact Material		Phosphor Bronze
Housing Material		Thermoplastic
Number of Ports		1
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
