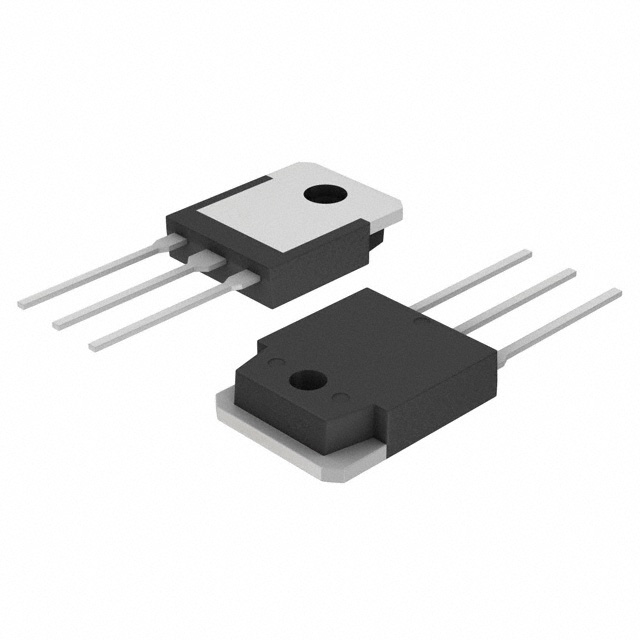

IXGQ90N27PB

IXGQ90N27PB

Part Number	IXGQ90N27PB
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	IXGQ90N27PB-ND
Description	IGBT 270V 90A 150W TO3P
Detailed Description	IGBT 270 V 90 A 150 W Through Hole TO-3P

Product Attributes

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		Littelfuse / IXYS RF
Series		Polar™
Packaging		Tube
Part Status		Active
Package / Case		TO-3P-3, SC-65-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Input Type		Standard
Vce(on) (Max) @ Vge, Ic		2.1V @ 15V, 50A
Supplier Device Package		TO-3P
Gate Charge		79 nC
Current - Collector (Ic) (Max)		90 A
Voltage - Collector Emitter Breakdown (Max)		270 V
Power - Max		150 W

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
