IXBA16N170AHV _ Single IGBTs_IGBTs_Transistors_Discrete Semiconductor Products

Part Number	IXBA16N170AHV
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	IXBA16N170AHV-ND -IXBA16N170AHV
Description	REVERSE CONDUCTING IGBT
Detailed Description	IGBT 1700 V 16 A 150 W Surface Mount TO-263HV
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		Littelfuse / IXYS RF
Series		BIMOSFET™
Packaging		Tube
Part Status		Active

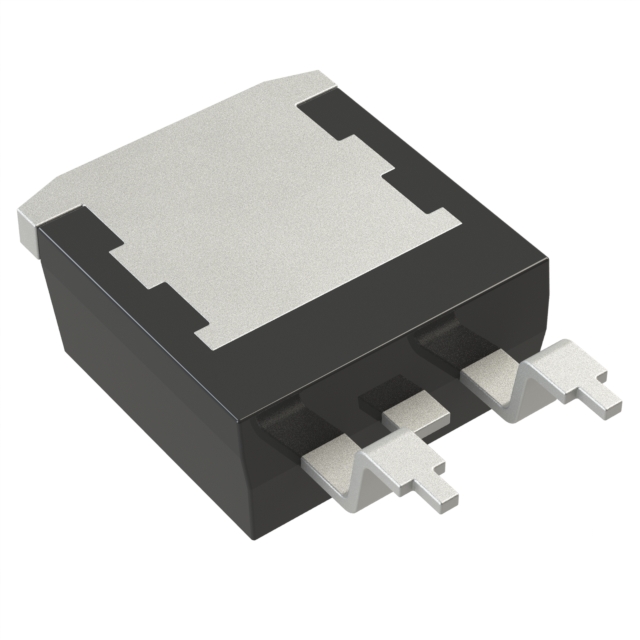

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Input Type		Standard
Reverse Recovery Time (trr)		25 ns
Vce(on) (Max) @ Vge, Ic		6V @ 15V, 10A
Supplier Device Package		TO-263HV
Td (on/off) @ 25°C		15ns/250ns
Switching Energy		2.5mJ (off)
Test Condition		1360V, 10A, 10Ohm, 15V
Gate Charge		65 nC
Current - Collector (Ic) (Max)		16 A
Voltage - Collector Emitter Breakdown (Max)		1700 V
Current - Collector Pulsed (Icm)		40 A
Power - Max		150 W

RESOURCE TYPE		LINK
Datasheets		IXBA16N170AHV

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
