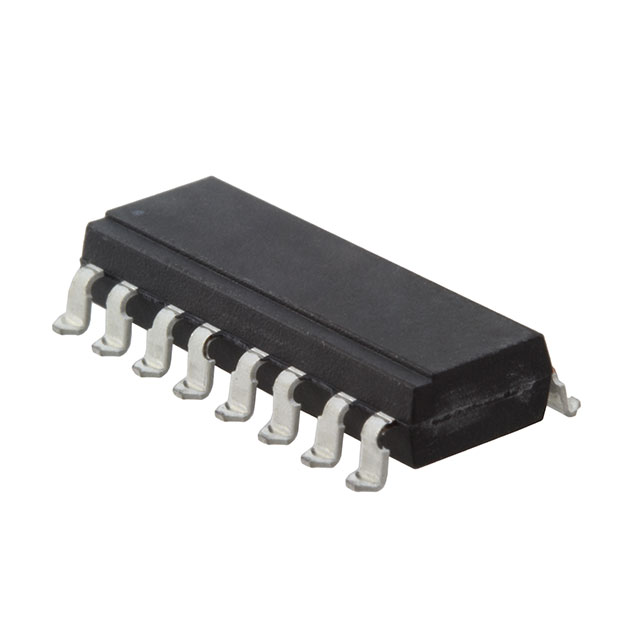

ISP624-4XSM _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ISP624-4XSM
Manufacturer	Isocom Components
Other Part Numbers	58-ISP624-4XSM-ND 58-ISP624-4XSM 56-ISP624-4XSM-ND 56-ISP624-4XSM
Description	16PIN TRANSISTOR OUTPUT, QUAD OP
Detailed Description	Optoisolator Transistor Output 5300Vrms 4 Channel 16-SMD
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Isocom Components
Series		ISP624-4
Packaging		Tube
Part Status		Active
Package / Case		16-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.15V
Input Type		DC
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		100% @ 1mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		1200% @ 1mA
Supplier Device Package		16-SMD
Voltage - Output (Max)		55V
Turn On / Turn Off Time (Typ)		10µs, 8µs
Rise / Fall Time (Typ)		8µs, 8µs
Number of Channels		4
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		ISP624-4XSM

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
