ISL9000IRLLZ-T _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	ISL9000IRLLZ-T
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	ISL9000IRLLZ-TTR-ND ISL9000IRLLZ-TCT-ND ISL9000IRLLZ-TTR ISL9000IRLLZT ISL9000IRLLZ-TCT
Description	IC REG LINEAR 2.9V/2.9V 10DFN
Detailed Description	Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 10-DFN (3x3)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Intersil (Renesas Electronics Corporation)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

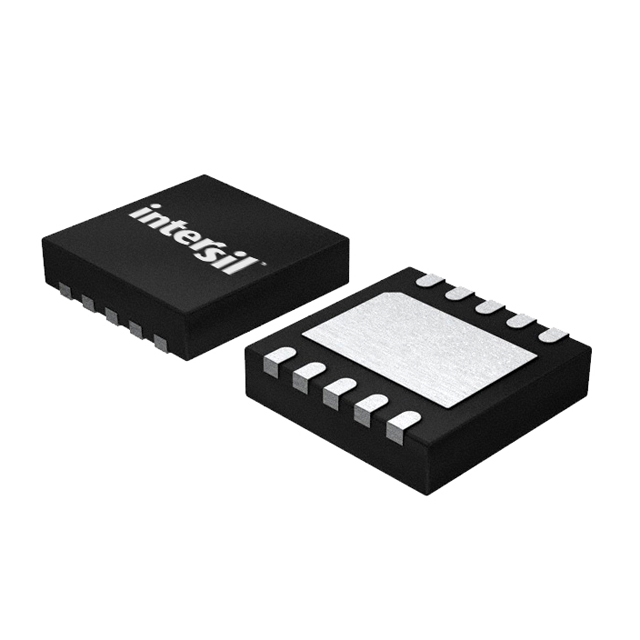

Package / Case		10-VFDFN Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		300mA, 300mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		32 µA
Voltage - Input (Max)		6.5V
Number of Regulators		2
Supplier Device Package		10-DFN (3x3)
Voltage - Output (Min/Fixed)		2.9V, 2.9V
Control Features		Enable, Power On Reset
Voltage Dropout (Max)		0.325V @ 300mA, 0.325V @ 300mA
Protection Features		Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Supply (Max)		52 µA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
