Part Number |
ISL6744AUZ-T
|
---|---|
Manufacturer | Intersil (Renesas Electronics Corporation) |
Other Part Numbers |
ISL6744AUZ-TTR-ND
ISL6744AUZ-TCT
ISL6744AUZ-TTR
ISL6744AUZT
|
Description | IC REG CTRLR MULT TOPOLOGY 8MSOP |
Detailed Description | Full-Bridge, Half-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 8-MSOP |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Intersil (Renesas Electronics Corporation) | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |

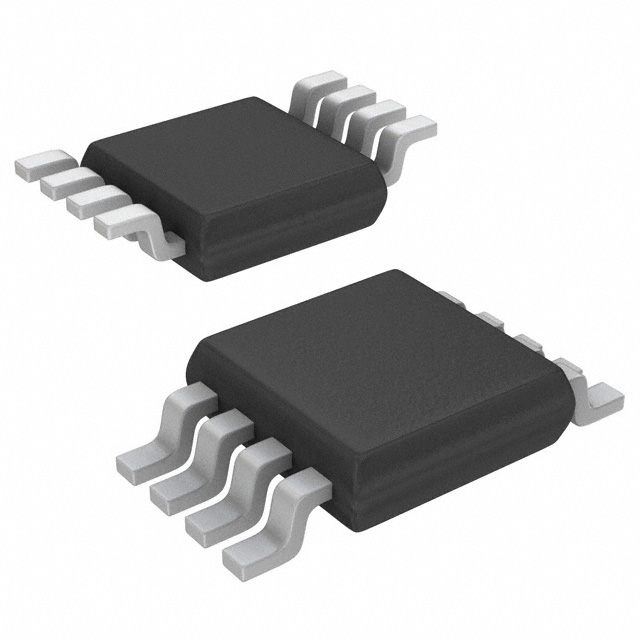

Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | |
Output Type | Transistor Driver | |
Mounting Type | Surface Mount | |
Function | Step-Up/Step-Down | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Output Configuration | Positive, Isolation Capable | |
Frequency - Switching | Up to 1MHz | |
Topology | Full-Bridge, Half-Bridge | |
Voltage - Supply (Vcc/Vdd) | 9V ~ 16V | |
Supplier Device Package | 8-MSOP | |
Synchronous Rectifier | Yes | |
Control Features | Frequency Control, Soft Start | |
Output Phases | 1 | |
Duty Cycle (Max) | 99% | |
Clock Sync | No | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Label Change-All Devices 01/Dec/2022 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
