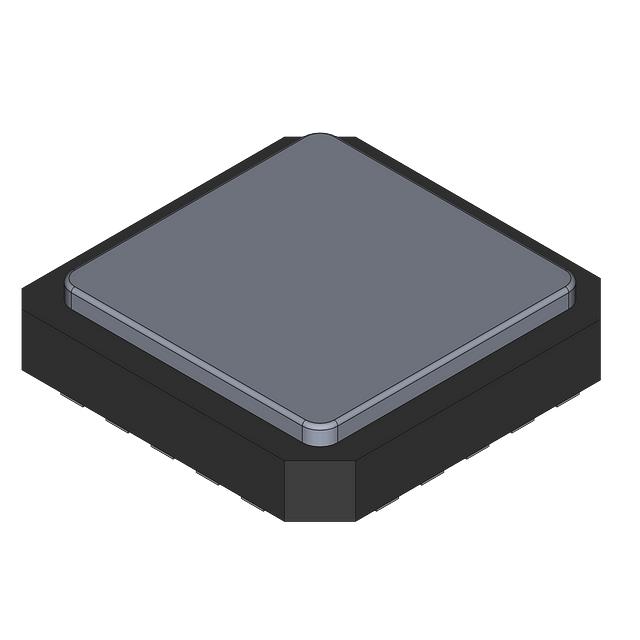

ISL54005IRTZ

Part Number
ISL54005IRTZ
Manufacturer Intersil
Other Part Numbers
2156-ISL54005IRTZ-IL-ND
2156-ISL54005IRTZ-IL
HARISLISL54005IRTZ
Description AUDIO AMPLIFIER
Detailed Description Amplifier IC 1-Channel (Mono) with Stereo Headphones Class AB 20-TQFN (4x4)

Product Attributes

Category
Manufacturer Intersil
Series
Packaging
Tube
Part Status Obsolete
Features Depop, Input Multiplexer, Shutdown, Thermal Protection
Package / Case 20-WFQFN Exposed Pad
Output Type 1-Channel (Mono) with Stereo Headphones
Mounting Type Surface Mount
Type Class AB
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 2.7V ~ 5.5V
Max Output Power x Channels @ Load 1.23W x 1 @ 8Ohm; 215mW x 2 @ 16Ohm
Supplier Device Package 20-TQFN (4x4)

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
