| Part Number |
ISD1420S
|
|---|---|
| Manufacturer | Nuvoton Technology Corporation |
| Other Part Numbers |
ISD1420S-ND
|
| Description | IC VOICE REC/PLAY 20SEC 28SOIC |
| Detailed Description | Voice Record/Playback IC Multiple Message 20 Sec Pushbutton 28-SOIC |
| Datasheet | Datasheet |
| Category | ||
|---|---|---|
| Manufacturer | Nuvoton Technology Corporation | |
| Series |
ChipCorder®
|
|
| Packaging | ||
| Part Status | Obsolete | |
| Features | Automatic Gain Control | |

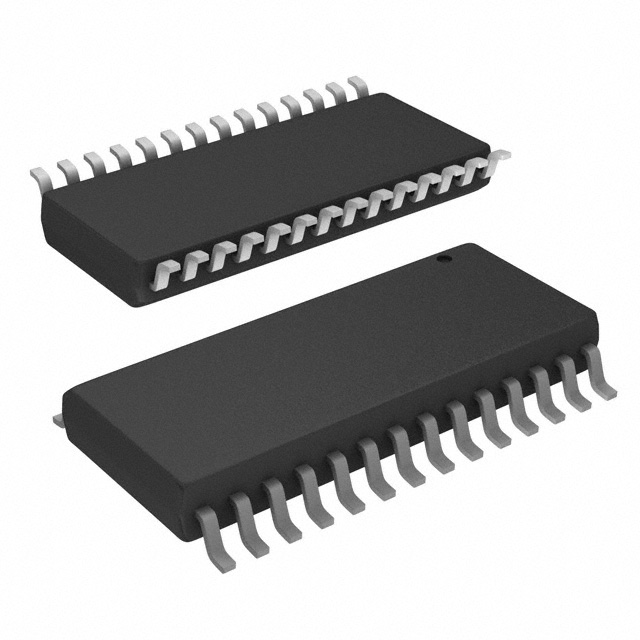

| Package / Case | 28-SOIC (0.295", 7.50mm Width) | |
| Mounting Type | Surface Mount | |
| Interface | Pushbutton | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Oscillator Type | Internal | |
| Filter Pass Band | 2.6kHz | |
| Duration | 20 Sec | |
| Supplier Device Package | 28-SOIC | |
| Output Signal | PWM Speaker Output | |
| Input Signal | Analog - Single Ended, Microphone | |
| Messaging | Multiple | |
| Sampling Frequency | 6.4kHz | |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| RESOURCE TYPE | LINK | |
|---|---|---|
| Datasheets | ISD1420S |
| ATTRIBUTE | DESCRIPTION | |
|---|---|---|
| ECCN | EAR99 | |
| HTSUS | 8542.39.0001 | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| REACH Status | REACH Unaffected | |
| RoHS Status | RoHS non-compliant |
