IRGR4045DPBF

Part Number
IRGR4045DPBF
Manufacturer International Rectifier
Other Part Numbers
2156-IRGR4045DPBF-ND
INFIRFIRGR4045DPBF
2156-IRGR4045DPBF
Description IGBT W/ULTRAFAST SOFT RECOVERY D
Detailed Description IGBT Trench 600 V 12 A 77 W Surface Mount DPAK

Product Attributes

Category
Manufacturer International Rectifier
Series
Packaging
Bulk
Part Status Active

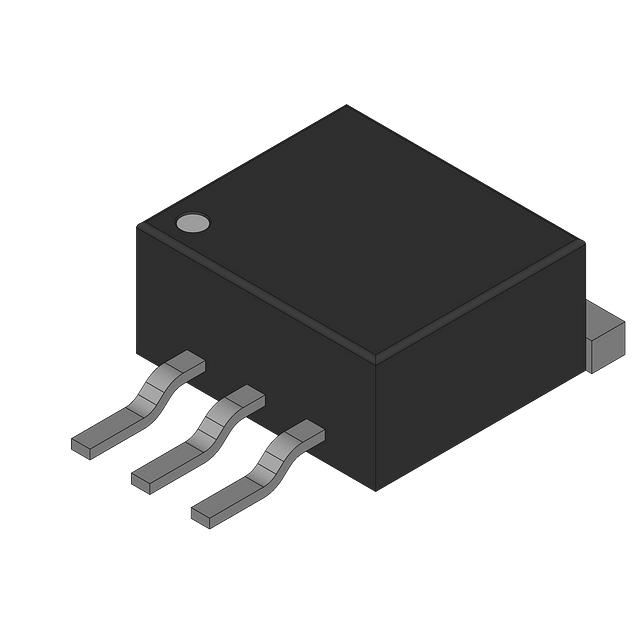

Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Operating Temperature -55°C ~ 175°C (TJ)
Input Type Standard
Reverse Recovery Time (trr) 74 ns
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 6A
Supplier Device Package DPAK
IGBT Type Trench
Td (on/off) @ 25°C 27ns/75ns
Switching Energy 56µJ (on), 122µJ (off)
Test Condition 400V, 6A, 47Ohm, 15V
Gate Charge 19.5 nC
Current - Collector (Ic) (Max) 12 A
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector Pulsed (Icm) 18 A
Power - Max 77 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 0000.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
