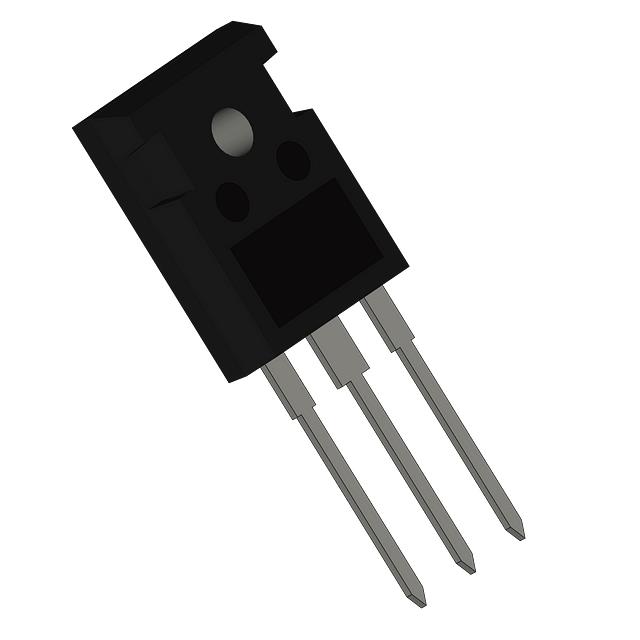

IRGPS40B120UPBF

IRGPS40B120UPBF

Part Number	IRGPS40B120UPBF
Manufacturer	International Rectifier
Other Part Numbers	2156-IRGPS40B120UPBF-ND 2156-IRGPS40B120UPBF INFIRFIRGPS40B120UPBF
Description	ULTRAFAST CO-PACK IGBT W/ULTRAFA
Detailed Description	IGBT NPT 1200 V 80 A 595 W Through Hole SUPER-247™ (TO-274AA)

Product Attributes

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		International Rectifier
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-274AA
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Input Type		Standard
Vce(on) (Max) @ Vge, Ic		3.71V @ 15V, 50A
Supplier Device Package		SUPER-247™ (TO-274AA)
IGBT Type		NPT
Switching Energy		1.4mJ (on), 1.65mJ (off)
Test Condition		600V, 40A, 4.7Ohm, 15V
Gate Charge		340 nC
Current - Collector (Ic) (Max)		80 A
Voltage - Collector Emitter Breakdown (Max)		1200 V
Current - Collector Pulsed (Icm)		160 A
Power - Max		595 W

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		Not applicable
