IRG4IBC20UDPBF _ Single IGBTs_IGBTs_Transistors_Discrete Semiconductor Products

Part Number	IRG4IBC20UDPBF
Manufacturer	International Rectifier
Other Part Numbers	2156-IRG4IBC20UDPBF-ND INFINFIRG4IBC20UDPBF 2156-IRG4IBC20UDPBF

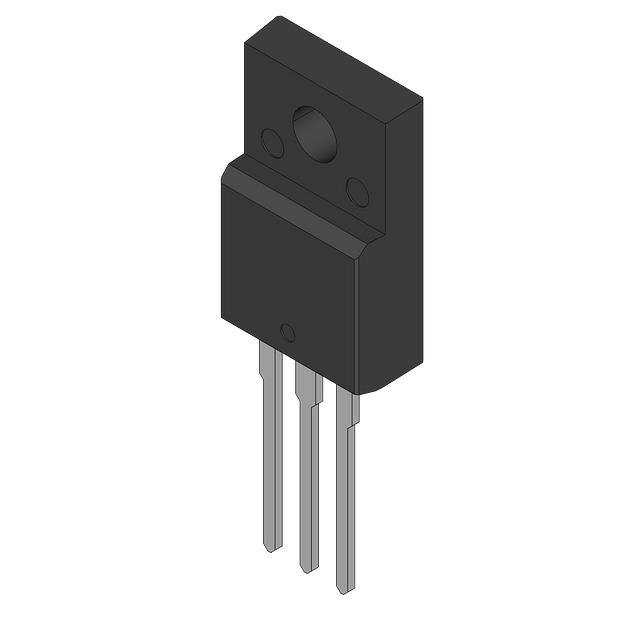

Description	IGBT, 11.4A, 600V, N-CHANNEL
Detailed Description	IGBT 600 V 11.4 A 34 W Through Hole TO-220AB Full-Pak

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		International Rectifier
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Input Type		Standard
Reverse Recovery Time (trr)		37 ns
Vce(on) (Max) @ Vge, Ic		2.1V @ 15V, 6.5A
Supplier Device Package		TO-220AB Full-Pak
Td (on/off) @ 25°C		39ns/93ns
Switching Energy		160µJ (on), 130µJ (off)
Test Condition		480V, 6.5A, 50Ohm, 15V
Gate Charge		27 nC
Current - Collector (Ic) (Max)		11.4 A
Voltage - Collector Emitter Breakdown (Max)		600 V
Current - Collector Pulsed (Icm)		52 A
Power - Max		34 W
