IR3843AMTRPBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	IR3843AMTRPBF
Manufacturer	International Rectifier
Other Part Numbers	2156-IR3843AMTRPBF-ND 2156-IR3843AMTRPBF IFEIRFIR3843AMTRPBF
Description	IC REG BUCK ADJ 3A PQFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 3A 15-PowerVQFN

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		International Rectifier
Series		SupIRBuck®
Packaging		Bulk
Part Status		Active

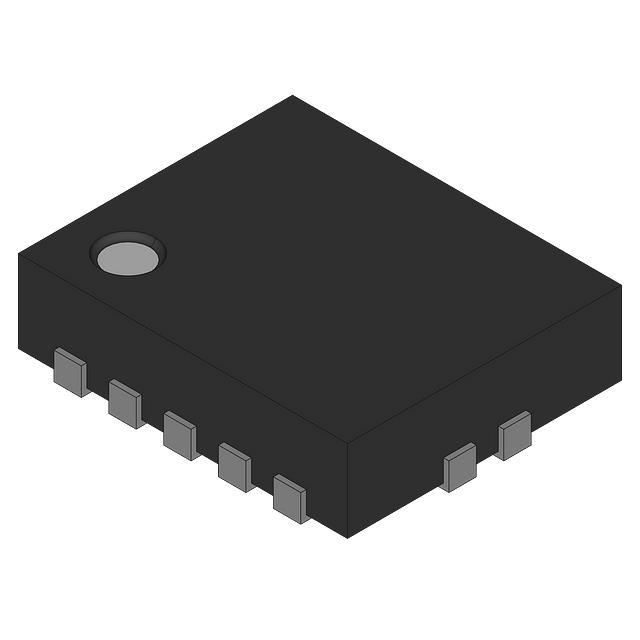

Package / Case		15-PowerVQFN
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		3A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		225kHz ~ 1.32MHz
Voltage - Input (Max)		21V
Topology		Buck
Supplier Device Package		PQFN (5x6)
Synchronous Rectifier		Yes
Voltage - Output (Max)		18.9V
Voltage - Input (Min)		1.5V
Voltage - Output (Min/Fixed)		0.7V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
