IR2233JPBF

Part Number
IR2233JPBF
Manufacturer International Rectifier
Other Part Numbers
2156-IR2233JPBF-600047-ND
2156-IR2233JPBF-600047
Description IR2233J - GATE DRIVER
Detailed Description Half-Bridge Gate Driver IC Non-Inverting 44-PLCC, 32 Leads (16.58x16.58)

Product Attributes

Category
Manufacturer International Rectifier
Series
Packaging
Bulk
Part Status Obsolete

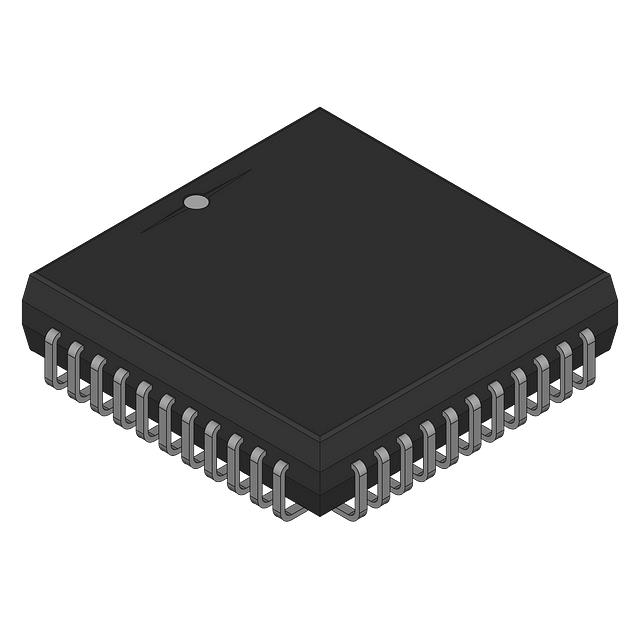

Package / Case 44-LCC (J-Lead), 32 Leads
Mounting Type Surface Mount
Operating Temperature 125°C (TJ)
Voltage - Supply 10V ~ 20V
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 1200 V
Supplier Device Package 44-PLCC, 32 Leads (16.58x16.58)
Rise / Fall Time (Typ) 90ns, 40ns
Channel Type 3-Phase
Driven Configuration Half-Bridge
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH 0.8V, 2.2V
Current - Peak Output (Source, Sink) 200mA, 420mA
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
