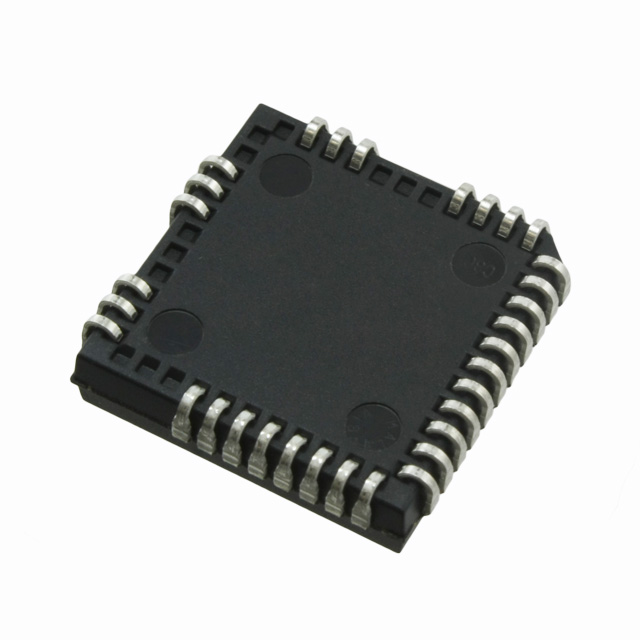

IR21362J

Part Number
IR21362J
Manufacturer IR (Infineon Technologies)
Other Part Numbers
IR21362J-ND
*IR21362J
Description IC GATE DRVR HALF-BRIDGE 44PLCC
Detailed Description Half-Bridge Gate Driver IC Inverting, Non-Inverting 44-PLCC, 32 Leads (16.58x16.58)
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tube
Part Status Obsolete
Package / Case 44-LCC (J-Lead), 32 Leads
Mounting Type Surface Mount
Operating Temperature -40°C ~ 150°C (TJ)
Voltage - Supply 11.5V ~ 20V
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 600 V
Supplier Device Package 44-PLCC, 32 Leads (16.58x16.58)
Rise / Fall Time (Typ) 125ns, 50ns
Channel Type 3-Phase
Driven Configuration Half-Bridge
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 200mA, 350mA
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets Part Number Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
