IPC0084-S

Part Number
IPC0084-S
Manufacturer Chip Quik, Inc.
Other Part Numbers
IPC0084-S-ND

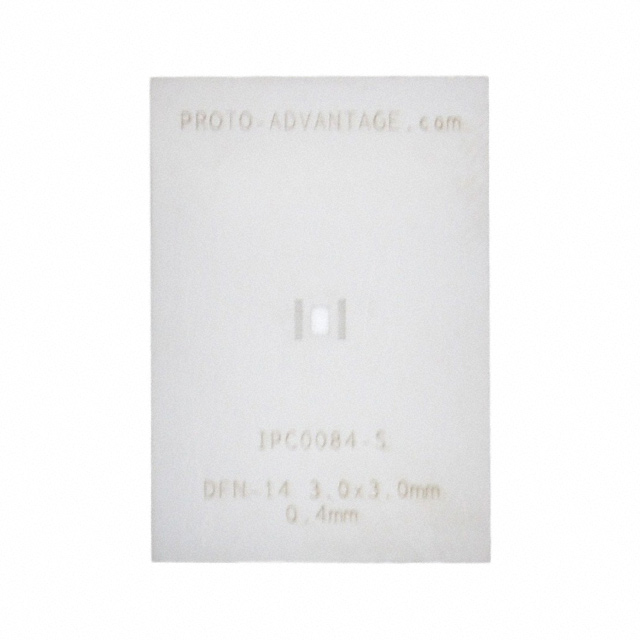

Description DFN-14 STENCIL
Manufacturer Standard Lead Time 2 weeks

Product Attributes

Category
Manufacturer Chip Quik, Inc.
Series
Proto-Advantage IPC
Packaging
Bulk
Part Status Active
Material Stainless Steel
Pitch 0.016" (0.40mm)
Type DFN
Inner Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Outer Dimension 1.300" L x 0.900" W (33.02mm x 22.86mm)
Thermal Center Pad 0.091" L x 0.059" W (2.30mm x 1.50mm)
Number of Positions 14

Documents & Media

RESOURCE TYPE LINK
Datasheets IPC0084-S
Datasheets Circuit Assembly Instr
Datasheets Stencil Selection Guilde

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 7218.10.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
