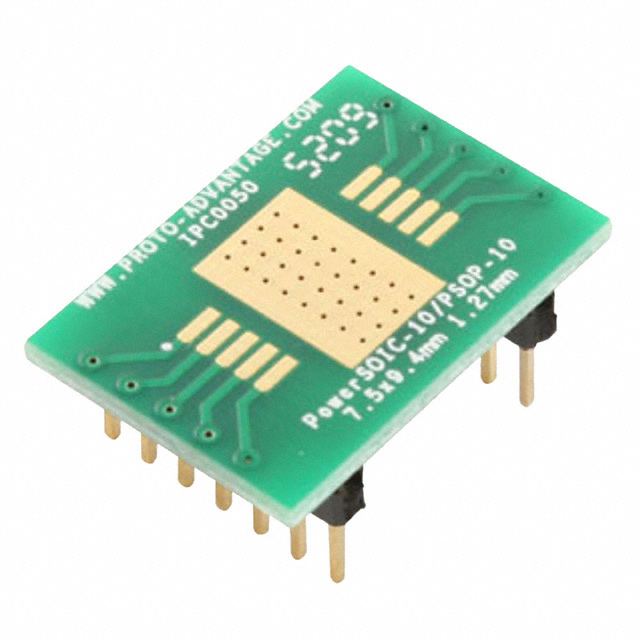

IPC0050

IPC0050

Part Number	IPC0050
Manufacturer	Chip Quik, Inc.
Other Part Numbers	IPC0050-ND
Description	POWERSOIC-10/PSOP-10/HSOP-10

Product Attributes

Category		Prototyping, Fabrication Products Adapter, Breakout Boards
Manufacturer		Chip Quik, Inc.
Series		Proto-Advantage
Packaging		Bulk
Part Status		Active
Size / Dimension		1.000" x 0.700" (25.40mm x 17.78mm)
Material		FR4 Epoxy Glass
Number of Positions		10
Pitch		0.050" (1.27mm)
Board Thickness		0.062" (1.57mm) 1/16"
Proto Board Type		SMD to DIP
Package Accepted		PowerSOIC, PSOP, HSOP

Documents & Media

RESOURCE TYPE		LINK
Datasheets		IPC0050
Datasheets		Adapter Selection Guide
Datasheets		Pin Assembly Instr

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
