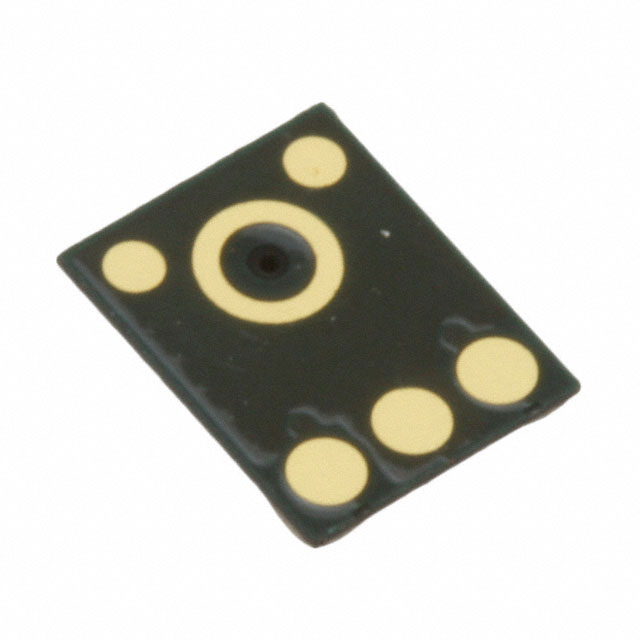

INMP401ACEZ-R0

Part Number
INMP401ACEZ-R0
Manufacturer TDK InvenSense
Other Part Numbers
1428-1029-2-ND
1428-1029-6
Q8083182
1428-1029-1
1428-1029-2
Description MIC MEMS ANALOG OMNI -42DB
Detailed Description 60 Hz ~ 15 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.3 V Omnidirectional (-42dB ±3dB @ 94dB SPL) Solder Pads

Product Attributes

Category
Manufacturer TDK InvenSense
Series
INMP401
Packaging
Tape & Reel (TR)
Part Status Obsolete
Output Type Analog
Size / Dimension 0.186" L x 0.148" W (4.72mm x 3.76mm)
Sensitivity -42dB ±3dB @ 94dB SPL
Shape Rectangular
Type MEMS (Silicon)
S/N Ratio 62dB
Termination Solder Pads
Direction Omnidirectional
Port Location Bottom
Height (Max) 0.043" (1.10mm)
Impedance 200 Ohms
Current - Supply 250 µA
Voltage Range 1.5 V ~ 3.3 V
Frequency Range 60 Hz ~ 15 kHz

Documents & Media

RESOURCE TYPE LINK
Datasheets INMP401ACEZ-R0
Datasheets Multiple Devices 24/Jul/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8518.10.8030
Moisture Sensitivity Level (MSL) 5 (48 Hours)
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
